Hid - Usa 40NKS-T2-00A8H9 | Signo Reader 40 Contactless Smartcard R...
Description
Description

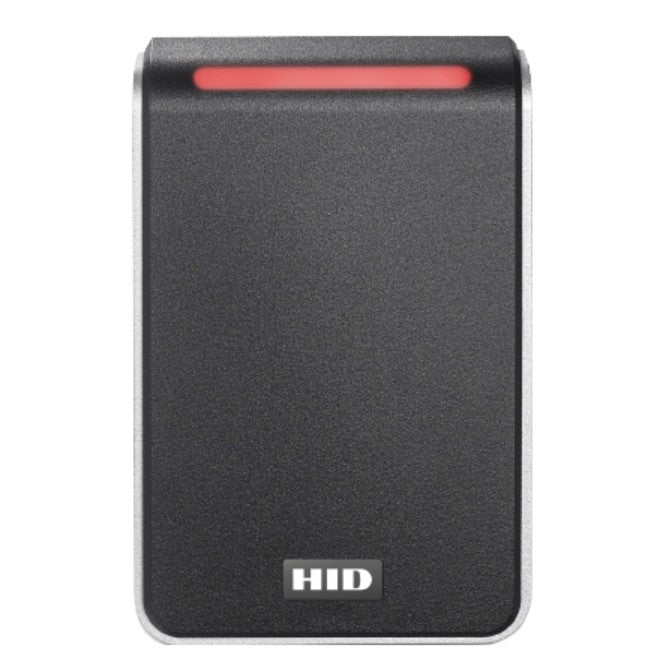

The HID Signo Reader 40 is a founding member of the Signo platform. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.
A perfect fit for door applications requiring wall switch mounting, the HID Signo Reader 40 supports an unparalleled range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.
Moreover, HID Signo Readers are simple to order and install, making the upgrade process easy for everyone.
Hid - Usa - 40NKS-T2-00A8H9 - Features
- Highly Versatile — Support for the widest range of credential technologies, including HID Mobile Access via native Bluetooth® and Near Field Communication (NFC) capability. Also features Apple’s Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet.
- Enhanced Performance — Storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance
- Connected to the Future — All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Each reader is also designed to be connected and managed remotely without “sneakernet” or the need to be physically touched.
Specifications
Specifications
Hid - Usa - 40NKS-T2-00A8H9 - Specifications
| Manufacturer | Hid - Usa |
|---|---|
| Manufacturer Part Number | 40NKS-T2-00A8H9 |
| 2.4 GHz (Bluetooth) Credential Compatibility | Mobile Credentials powered by Seos® (HID Mobile Access) |
| 13.56 MHz (NFC) Credential Compatibility | Seos®, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access) |
| 125 kHz Credential Compatibility | HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity |
| Typical Read Range1 | Seos, iCLASS® SE™, iCLASS® SR, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3 & ISO14443A Single Technology Cards – 1.6 to 4 in (4 to 10 cm) ; HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards – 2.4 to 4 in (6 to 10 cm) |
| Mounting | Suited for mullion-mount door installations or any flat surface mounting |
| Color | Black or white with silver trim baseplate |
| Keypad | No |
| Dimensions (width x length x depth) | 3.15 in x 4.78 in x 0.77 in (80 mm x 121.5 mm x 19.5 mm) |
| Product Weight | Pigtail: 4.94 oz (140 g), Terminal: 4.23 oz (120 g) |
| Operating Voltage | 12V DC |
| Current Draw | NSC: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM: 45 mA |
| Device Input and Output | Input: Tri-color LED, Buzzer, Hold @ Active Low, Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact) |
| Operating Temperature & Humidity | -31° F to +150° F (-35° C to +66° C) 0% to 95% non-condensing |
| Storage Temperature | -40° F to +185° F (-40° C to +85° C) |
| Environmental Rating | UL294 Outdoor and Indoor rated, IP65 |
| Transmit Frequency | 125 kHz, 13.56 MHz, and 2.4 GHz |
| Communications & Panel Connection | Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip |
| Device Management | HID Reader Manager / OSDP configuration |
| Certifications | UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), MIC/Giteki (Japan) WPC/BIS (India), KCC (Korea), NCC (Taiwan), iDA (Singapore), MIC (Japan), RoHS, GreenCircle, Bluetooth SIG, and additional regions |
| Security Ratings | EAL 5+ Certified Secure Element Hardware |
| Housing Materials | Polycarbonate – UL94 V0 |
| UL Reference Number | 40 |
| Warranty | Limited Lifetime |
