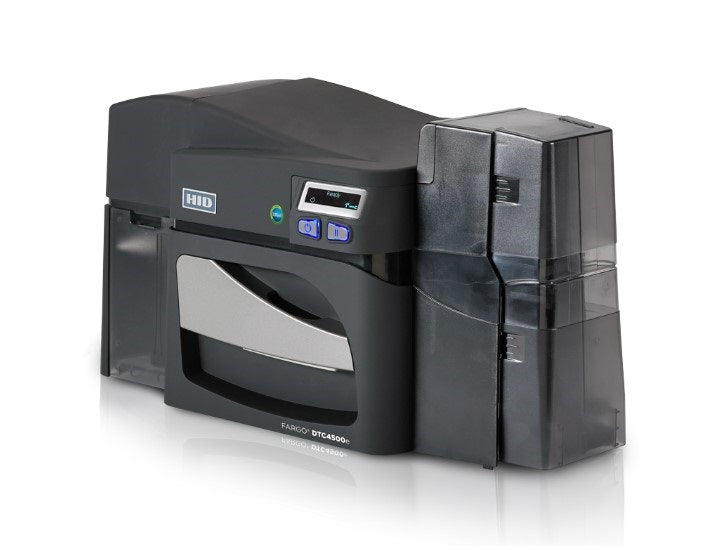

Hid - Usa 55543 | DTC4500E Dual-Side FARGO ID Card Printer & En...
Description
Description
The HID FARGO DTC4500e ID card printer is ideal for organizations requiring robust, high-volume printing every day. Standard features include high-capacity ribbon consumables and dual input card hoppers that allow for maximum card input capacity and the convenient management of multiple card types.
Designed for medium-to-large businesses, schools and local governments seeking higher-volume, direct-to-card printing, the DTC4500e offers a powerful and reliable print engine that delivers on both speed and performance. Dual input hoppers and support for high-capacity ribbons enable the DTC4500e to print twice as many full-color cards than most comparable printers before consumables would require replenishing — keeping productivity high and operator maintenance low.
Powerful, secure, versatile and eco-friendly, the DTC4500e is an ideal solution for organizations seeking to print superior-quality cards and IDs in higher volumes.
Hid - Usa - 55543 - Features
- High-quality output — Create high-quality, visually rich credentials on demand
- Simple plug-and-play — Leverage an intuitive SmartScreen interface for easy setup, consumables loading and operation
- Built-in security — Enjoy peace of mind with optional locks, built-in password protection and AES-256 encryption
- Earth-friendly — Support your green initiatives with GreenCircle Certified energy efficiency and support for eco-friendly (ECO) refill ribbons and rewritable cards
Specifications
Specifications
Hid - Usa - 55543 - Specifications
| Print Method | Dye sublimation / resin thermal transfer |
|---|---|
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Speed | 6 seconds per card (K*); 8 seconds per card (KO*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*) |
| Security Features | Optional locking hoppers; password protection; AES 256 encryption; resin scramble data protection; fluorescent panel printing |
| Accepted Standard Card Sizes | CR-80 (3.375?L x 2.125?W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313?L x 2.063?W / 84.1 mm L x 52.4 mm W) |
| Print Area | CR-80 edge-to-edge (3.36?L x 2.11?W / 85.3 mm L x 53.7 mm W); CR-79 (3.3?L x 2.04?W / 83.8 mm L x 51.8 mm W) |
| Accepted Card Thickness | Print only: .009? - .040? / 9 mil - 40 mil / .229 mm - 1.016 mm; print / lamination: .030? - .040? / 30 mil - 40 mil / .762 mm - 1.02 mm |
| Accepted Card Types | PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; rewrite |
| Input Hopper Card Capacity | 100 cards per input hopper (.030? / .762 mm) – Dual input hopper standard on every unit for a total input capacity of 200 cards |
| Output Hopper Card Capacity | Single-sided: Up to 30 cards. Dual-sided: Up to 100 cards. (.030” / .762 mm) |
| Reject Hopper Card Capacity | y Up to 100 cards (.030? / .762 mm) - same-side input/output card hopper or lamination module required |
| Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Memory | 32 MB RAM |
| Software Drivers | Windows® 7 / 10 / 11 / Server 2012 / Server 2016 / Server 2019 / Server 2022 |
| Interface | USB 2.0, Ethernet with internal print server |
| Operating Temperature | 65° to 80° F / 18° to 27° C |
| Humidity | 20–80% non-condensing |
| Dimensions | Dual-sided printer: 9.8? H x 18.7? W x 9.2? D / 249 mm H x 475 mm W x 234 mm D |
| Weight | Dual-sided printer: 11 lbs. / 5 Kg |
| Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
| Supply Frequency | 50 Hz / 60 Hz |
