Hid - Usa 920NNNTEK2048G | iCLASS SE R40, Contactless Smart Card Re...
Description
Description

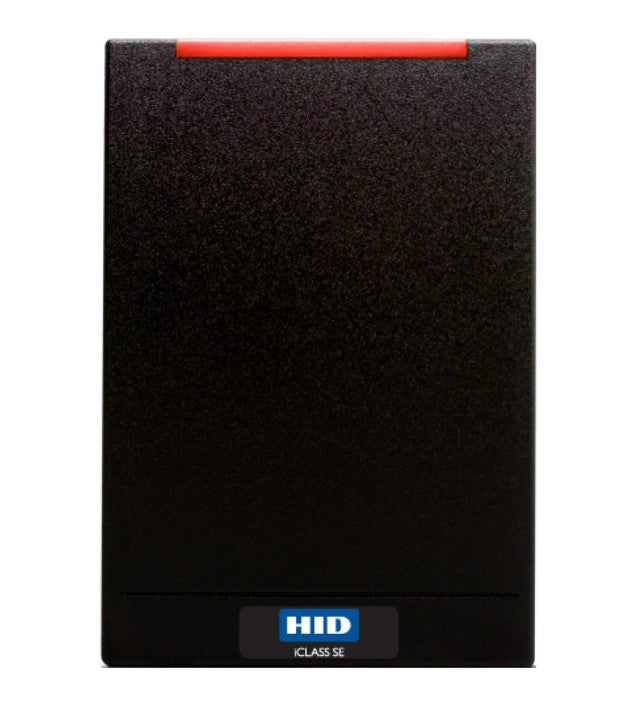

iCLASS SE R40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring standard wall switch mounting, iCLASS SE R40 supports a broad array of credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.
Hid - Usa - 920NNNTEK2048G - Features
- Adaptable – Interoperable with a growing range of technologies (iCLASS SEOS®, iCLASS SE, iCLASS, MIFARE® Classic, MIFARE DESFire® EV1) and form factors including mobile devices.
- Powerfully Secure – The iCLASS SE platform’s Secure Identity Object™ (SIO™) data model provides an extra layer of encryption for additional protection of identity data
- Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
Specifications
Specifications
Hid - Usa - 920NNNTEK2048G - Specifications
| Typical Read Range | iCLASS Seos: 3.2" (8 cm), iCLASS: 5.2" (13 cm), MIFARE Classic: 3.9" (10 cm), MIFARE DESFire EV1/EV2 3.2" (8 cm) |
|---|---|
| Mounting | Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing |
| Mounting Spacer | To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers |
| Color | Black |
| Keypad | No |
| Dimensions | 3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.4 cm |
| Product Weight (Pigtail) | 7.7 oz (220g) |
| Product Weight (Terminal Strip) | 7.5 oz (215g) |
| Operating Voltage Range | 5-16 VDC |
| Current Draw - Standard Power Mode (mA) | 65 @ 16V |
| Current Draw - Intelligent Power Management (IPM) Mode (mA) | 40 @ 16V |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket |
| Transmit Frequency | 13.56 MHz |
| Communications | Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485 |
| Panel Connection | Pigtail or Terminal Strip |
| Reader Management | HID Reader Manager Mobile App for HID Mobile Access / OSDP infield upgrade, configuration, firmware upgrade and diagnostics |
