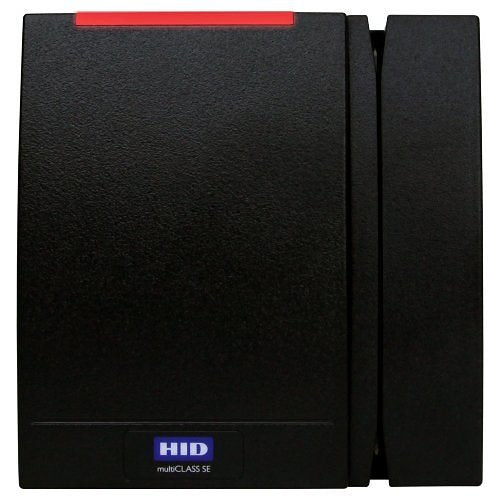

Hid - Usa 922PTNNEK00051 | MultiClass Reader, RMP40, Wall Switch Ma...
Description
Description
MultiCLASS Magnetic Stripe readers are designed for customers upgrading their current access control card system from the popular magnetic stripe (“magstripe”) technology to enhanced security from 13.56 MHz smart card technology. Supporting access control technology combinations including magnetic stripe, HID Prox and 13.56 MHz smart card technology (including iCLASS and FIPS 201 credentials), the multiCLASS Magnetic Stripe reader line represents the ultimate in flexibility, enabling a cost effective, time-feasible and truly seamless migration solution with no operational disruption.
Hid - Usa - 922PTNNEK00051 - Features
- Supports access control technology combinations including magnetic stripe, HID Prox and 13.56 MHz smart card technology (including iCLASS and FIPS 201 credentials)
- Vertical magnetic swipe produces similar user interaction with product reducing user confusion during migration.
- Swap magstripe backplate out with standard backplate for contactless 13.56 MHz only compatibility after site migration to increase security on site. Flippable backplate allows for the vertical magstripe to be mounted on left or right side of the core contactless wallswitch reader frame.
- Interoperable with a growing range of technologies and form factors including mobile devices.
- The iCLASS SE platform’s Secure Identity Object (SIO) data model provides an extra layer of encryption for additional protection of identity data.
- Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
- Designed for door applications requiring standard wall switch mounting with magnetic stripe read capability
Specifications
Specifications
Hid - Usa - 922PTNNEK00051 - Specifications
| Typical read range | iCLASS Card: Up to 4.0” (10.2 cm), iCLASS Key/Tag: Up to 1.25” (3.2 cm), MIFARE / DESFire Card (CSN): Up to 2” (5.1 cm) |
|---|---|
| Dimensions | 4.81" x 4.47" x 1.15" (12.2 cm x 11.4 cm x 2.9 cm) |
| 13.56 MHz card compatibility | iCLASS 15693, Reads Secure HID Access Control Application, All memory sizes |
| Approx Dims. Hwd-inches | 3" X 5" X 1" |
| Color | Black |
| Product Type | Access Reader |
| Format | Multiple Formats |
| Frequency | Multiple |
| Read Format | Multi-format |
| Mounting | Single Gang Or Surface |
| Product Type | Magnetic Stripe Reader |
| Color | Black |
| Height | 4.6" |
| Depth | 1.2" |
| Width | 4.5" |
| UPC Code: | 639399011986 |
