Brand: Hoffman
|
SKU:
648884

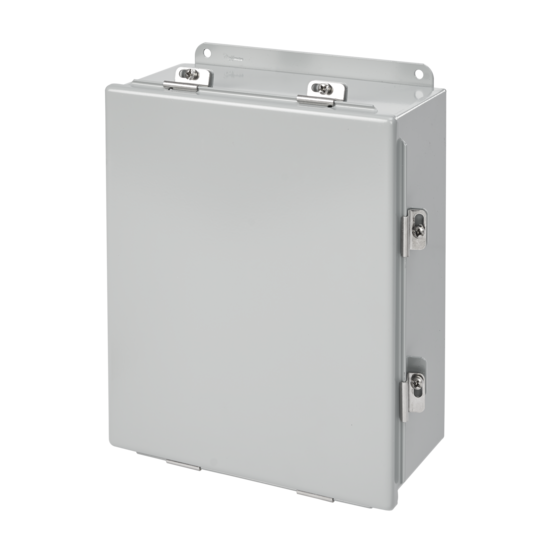

Hoffman A10106CHNF | Continuous Hinge with Clamps Type 4, 10.00x10.00x6.00, Gray, Steel
Regular price
$354.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A10106CHNF | Continuous Hinge with Clamps Type 4, 10.00x10....
Regular price
$354.74
Unit price
Description
Description
A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications.
Catalog numbers ending in "S" are hinged on short side.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Stainless steel screw-down clamps on three sides of door
- Continuous hinge
- Stainless steel hinge pin
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door
- External wall-mounting brackets for easy installation
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 4, 12, 13; File No. E27567
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E27567
- UL 508A Listed; Type 4, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42184: Type 4 and 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A10P10
- Catalog #: A10P10G
- Catalog #: A10P10AL
- Catalog #: AHCI1DV
- Catalog #: AHCI5E
- Catalog #: AL23SS
- Catalog #: APLKJIC
- Catalog #: APLKJIC6SS
Hoffman On Demand Alternatives
- Catalog #: A808CHNF
- Catalog #: A606CHNF
- Catalog #: A1614CHNF
- Catalog #: A1412CHNF
- Catalog #: A1212CHNF
- Catalog #: A1210CHNF
- Catalog #: A10106CHNF
- Catalog #: A1008CHNF
Specifications
| Height | 10 in / 254 mm |
|---|---|
| Width | 10 in / 254 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Panel | A10P10 |
| Conductive Panel | A10P10G |
| Panel Size | 8.75 x 8.88 in / 222 x 226 mm |
| Mounting | 10.75 x 8.00 in / 273 x 203 mm |
| Overall Dimensions | 11.50 x 10.94 in / 292 x 278 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A51NF |
Documents and Downloads
Documents and Downloads
