Brand: Hoffman
|
SKU:
648895

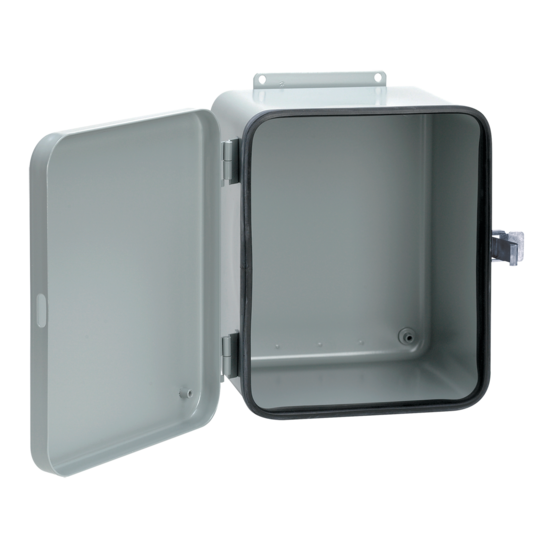

Hoffman A1084DL | Removable Hinge, Quick-Release Latch, Contoured, Type 12, 10x8x4, Gray, Steel
Regular price
$264.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1084DL | Removable Hinge, Quick-Release Latch, Contoured, ...
Regular price
$264.46
Unit price
Description
Description
Featuring a quick-release latch, mounting brackets, rounded corners and an attractive finish, this enclosure can be used in applications where panel or cover mounting of controls is desired. Ideal for protecting equipment from indoor contaminants.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Drawn enclosure
- No welded seams or sharp corners
- Removable door with unique lift-off hinges
- Cover is removable and interchangeable
- Quick-release latches
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal
- External wall-mounting brackets for easy installation
- Bonding provision on door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12 and 13
- IEC 60529, IP65
Related Accessories
- Catalog #: A10P8
- Catalog #: A10P8G
- Catalog #: A10P8AL
- Catalog #: A10P8SS
- Catalog #: AJCDFK
- Catalog #: A8JTMA
- Catalog #: A10P8C
- Catalog #: A10JS
Specifications
| Height | 10 in / 254 mm |
|---|---|
| Width | 8 in / 203 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Panel Size | 8.75 x 6.88 in / 222 x 175 mm |
| Conductive Panel | A10P8G |
| Overall Dimensions | 11.00 x 9.12 in / 279 x 232 mm |
| Mounting | 10.50 x 4.12 in / 267 x 105 mm |
| Panel | A10P8 |
| Color | Gray |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A51 |
