Brand: Hoffman
|
SKU:
445776

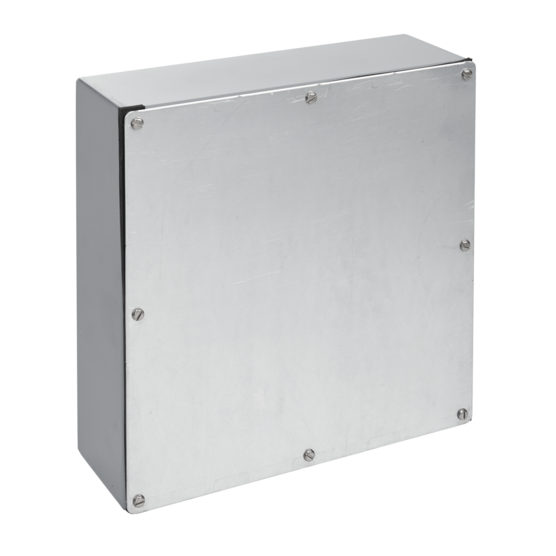

Hoffman A1084GSC | Screw-Cover, Gasketed, Type 3, 10.00x8.00x4.00, Steel
Regular price
$152.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1084GSC | Screw-Cover, Gasketed, Type 3, 10.00x8.00x4.00, ...
Regular price
$152.57
Unit price
Description
Description
Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
Main Features
- Captivated stainless steel cover screws thread into sealed wells
- Oil-resistant gasket and adhesive
- Seams continuously welded and ground smooth
- No holes or knockouts
- Grounding stud on inside back of box
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3, 12; File No. E61997
- NEMA/EEMAC Type 3 and 12 (except for mounting provisions)
- CSA, File 42184: Type 4 and 12
- IEC 60529, IP66
Specifications
| Height | 10 in / 254 mm |
|---|---|
| Width | 8 in / 203 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 3; IP66 |
| Material | Mild Steel |
| Finish | Galvanized |
| Color | Unpainted |
| Body Thickness | 14 ga / 1.9 mm |
| Door Thickness | 12 ga / 2.66 mm |
| Cover Screw Quantity | 6 |
| Weight | 7.3 lb |
| BULLETIN NUMBER | A90GS |
