Brand: Hoffman | SKU: 366688

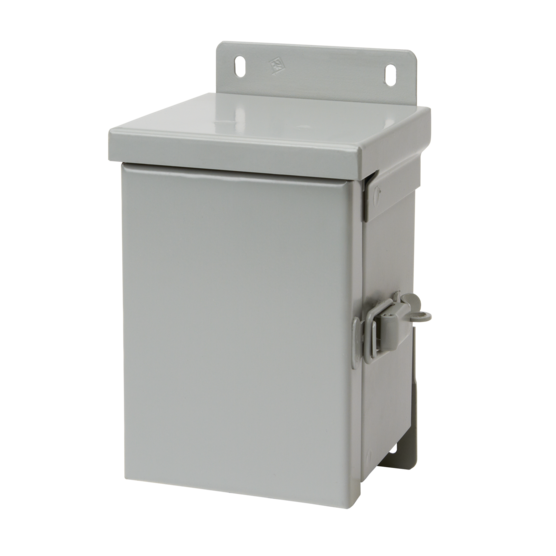

Hoffman A10R86HCR | Hinge-Cover Small Type 3R, 10.00x8.00x6.00, Steel

$195.81

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Small Drip-Shield Hinged-Cover, Type 3R protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock in its draw-pull catch and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.

Purchase panels separately.

Main Features

Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
Plated steel hinge has stainless steel pin
Weldnuts provided for mounting optional panels
Provisions for padlocking on zinc-plated draw-pull catch
Knockouts on bottom of enclosure
No gasketing

Specifications

Industry Standards

UL 50, 50E Listed; Type 3R; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
NEMA/EEMAC Type 3R
IEC 60529, IP32

Specifications

Height	10 in / 254 mm
Width	8 in / 203 mm
Depth	6 in / 152 mm
Protection Rating	NEMA Type 3R; IP32
Material	Mild Steel
Finish	Powder Coated
Color	Gray
Color Code	ANSI 61
Thickness	16 ga / 1.52 mm
Panel Size	8.25 x 6.25 in / 210 x 159 mm
Overall Dimensions	12.00 x 8.81 in / 305 x 224 mm
Mounting	11 in / 279 mm
BULLETIN NUMBER	A3SM
