Brand: Hoffman
|
SKU:
648912

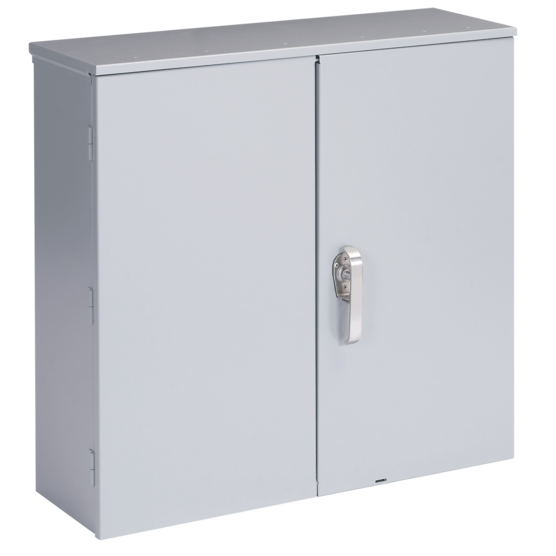

Hoffman A1200NECT | CT Cabinet 3-Phase 400-800 Amp with Mechanical Lugs, Gray, Steel
Regular price
$4,303.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1200NECT | CT Cabinet 3-Phase 400-800 Amp with Mechanical ...
Regular price
$4,303.55
Unit price
Description
Description
CT Cabinet, 3-Phase 400-1200 Amp with Lugs, Type 3R, are used in indoor or outdoor applications. These cabinets provide an assembly solution for three-phase service from 400-1200 amp line load terminations for each phase and neutral. Hardware to mount a bar-style current transformer is included.
Main Features
- Double door with 3-point latch includes padlock feature
- Lift-off hinges for removable doors
- Mechanical lugs provided for three-phase line-load connections plus neutral
- Ground lug
- Catalog number A1200NECT includes panel-mounting provisions for voltage transformer (VT)
- Embossed mounting holes
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 414 Listed; Type 3R; File No. E240312
- UL 50, 50E Listed; Type 3R; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
- NEMA Type 3R
- IEC 60529, IP 32
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 48 in / 1219 mm |
|---|---|
| Width | 48 in / 1219 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 2.66 mm / 12 ga |
| Door Thickness | 14 ga / 1.9 mm |
| Service | 208Y/120-480Y/277-800 and 1200 Amp |
| Mechanical Lug Capacity | Each Phase (6) 750MCM-1/0 |
| BULLETIN NUMBER | ARCT |
