Hoffman A12106CHSCFG | Continuous-Hinge-Screw-Cover-Enclosure
Regular price
$259.39
Unit price
Brand: Hoffman
|
SKU:
4010235-JBT
Regular price
$259.39
Unit price
Description
Description

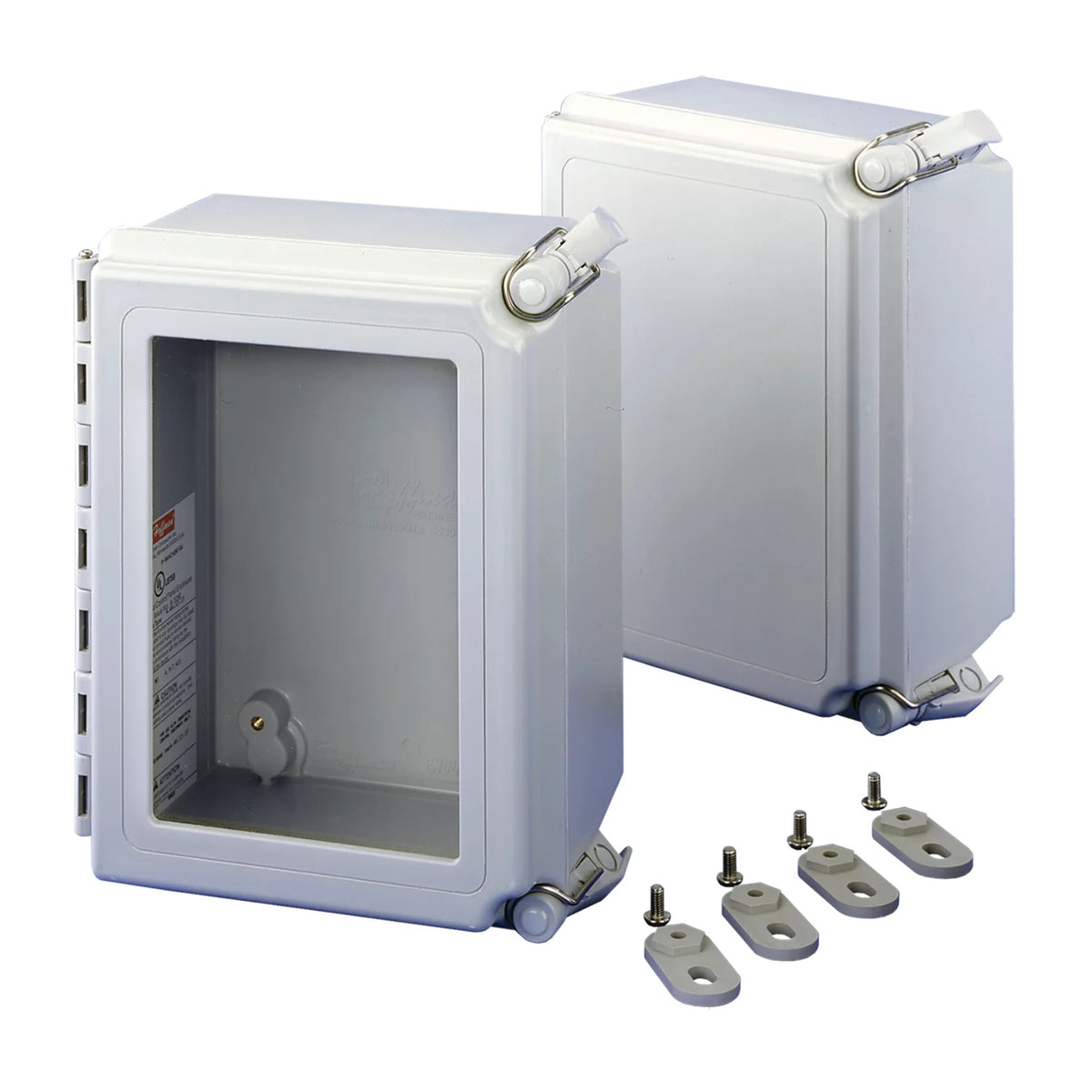

Hoffman A12106CHSCFG | Continuous-Hinge-Screw-Cover-Enclosure
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.
Hoffman - A12106CHSCFG - Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Specifications
Specifications
Hoffman - A12106CHSCFG - Specifications
| Article Number | 29690 |
|---|---|
| Color Code | RAL 7035 |
| Thickness | 0.16 in |
| Panel Size | 10.75 x 8.88 in |
| Height | 12 in |
| Width | 10 in |
| Depth | 6 in |
| Material | Fiberglass |
| Type | Solid Screw Cover |
| Finish | Smooth Matte |
| Color | Light Gray |
| Overall Dimensions | 12.50 x 10.50 in |
| Steel Panel | A12P10 |
| Mounting | 12.94 x 8.00 in |
| Aluminum Panel | A12P10AL |
| Weight | 5.5 lb |
