Brand: Hoffman
|
SKU:
648928

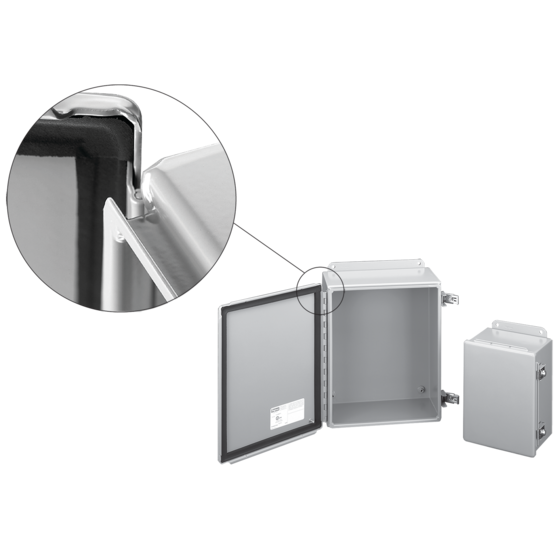

Hoffman A1210CHFTC | Continuous Hinge, Flange Trough Collar, Type 12, 12.00x10.00x4.54, Gray, Steel
Regular price
$320.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1210CHFTC | Continuous Hinge, Flange Trough Collar, Type 1...
Regular price
$320.41
Unit price
Description
Description
Used in automotive and other applications that require an outward formed external flange trough collar to keep out liquids and contaminants. These enclosures feature tool-to-open latches for securing cover.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- External formed body flange channels away liquids
- Continuous hinge
- Bonding provision on door
- Heavy-duty, tool-to-open, plated latches
- Oil-resistant gasket
- External wall-mounting brackets
- Weldnuts provided for mounting optional panels and terminal block kits
- Seams continuously welded and ground smooth
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27567
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27567
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA, File No. 42184, Type 12, 13
- IEC 60529, IP65
Related Accessories
- Catalog #: A12P10
- Catalog #: A12P10AL
- Catalog #: A12P10G
- Catalog #: APLKJIC
- Catalog #: A12P10SS
- Catalog #: APLKJIC6SS
- Catalog #: AJCDFK
- Catalog #: A10JS
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 10 in / 254 mm |
| Depth | 5.75 in / 146 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Panel Size | 10.75 x 8.88 in / 273 x 226 mm |
| Conductive Panel | A12P10G |
| Overall Dimensions | 13.50 x 10.88 in / 343 x 276 mm |
| Mounting | 12.75 x 8.00 in / 324 x 203 mm |
| Panel | A12P10 |
| Body Thickness | 16 ga / 1.52 mm |
| Color | Gray |
| BULLETIN NUMBER | A51 |
Documents and Downloads
Documents and Downloads
- Hoffman A1210CHFTC Data Sheet
- Hoffman A1210CHFTC Declaration of Compliance
- Hoffman A1210CHFTC EU Declaration of Conformity IP65
- Hoffman A1210CHFTC CERT-00087
- Hoffman A1210CHFTC Single-Sided Shelf Repainting Instructions
- Hoffman A1210CHFTC Hinge-Cover, Small, Type 3R Instruction Manual
- Hoffman A1210CHFTC Continuous Hinge with Flange Trough Collar, Type 12 Spec Sheet
