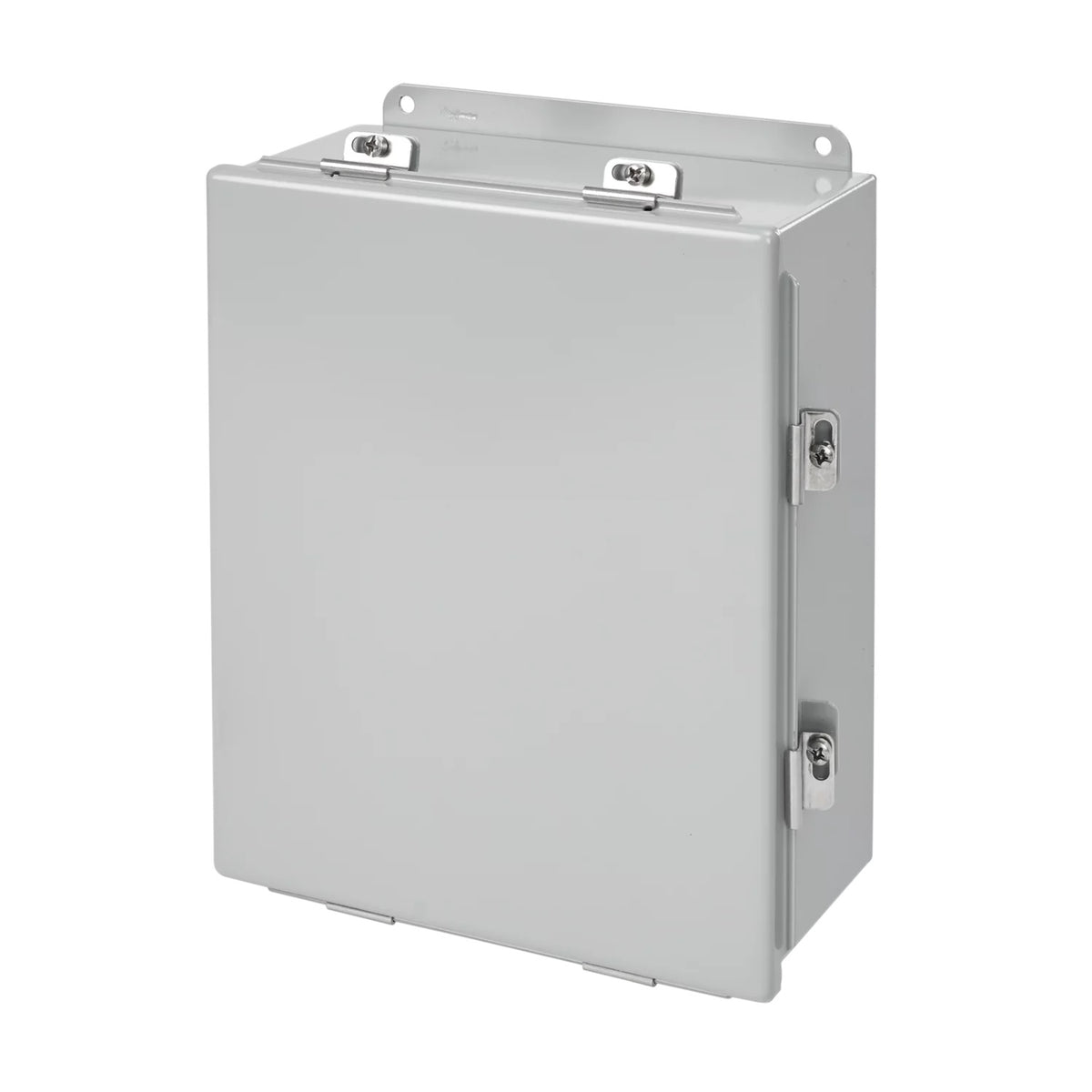

Hoffman A1210CHNF | Continuous-Hinge-Enclosure-with-Clamps
Regular price
$362.38
Unit price
Brand: Hoffman
|
SKU:
438261
Regular price
$362.38
Unit price
Description
Description
Hoffman A1210CHNF | Continuous-Hinge-Enclosure-with-Clamps
A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications.
Hoffman - A1210CHNF - Features
- Seams continuously welded and ground smooth
- Stainless steel screw-down clamps on three sides of door
- Continuous hinge
- Stainless steel hinge pin
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door
- External wall-mounting brackets for easy installation
Specifications
Specifications
Hoffman - A1210CHNF - Specifications
| Article Number | 55740 |
|---|---|
| Height | 305 mm |
| Width | 254 mm |
| Depth | 127 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 1.9 mm |
| Panel | A12P10 |
| Conductive Panel | A12P10G |
| Panel Size | 273 x 225 mm |
| Mounting | 324 x 203 mm |
| Overall Dimensions | 343 x 278 mm |
| UPC | 783510557409 |
| Standard Packaging Quantity | 1.0000 |
