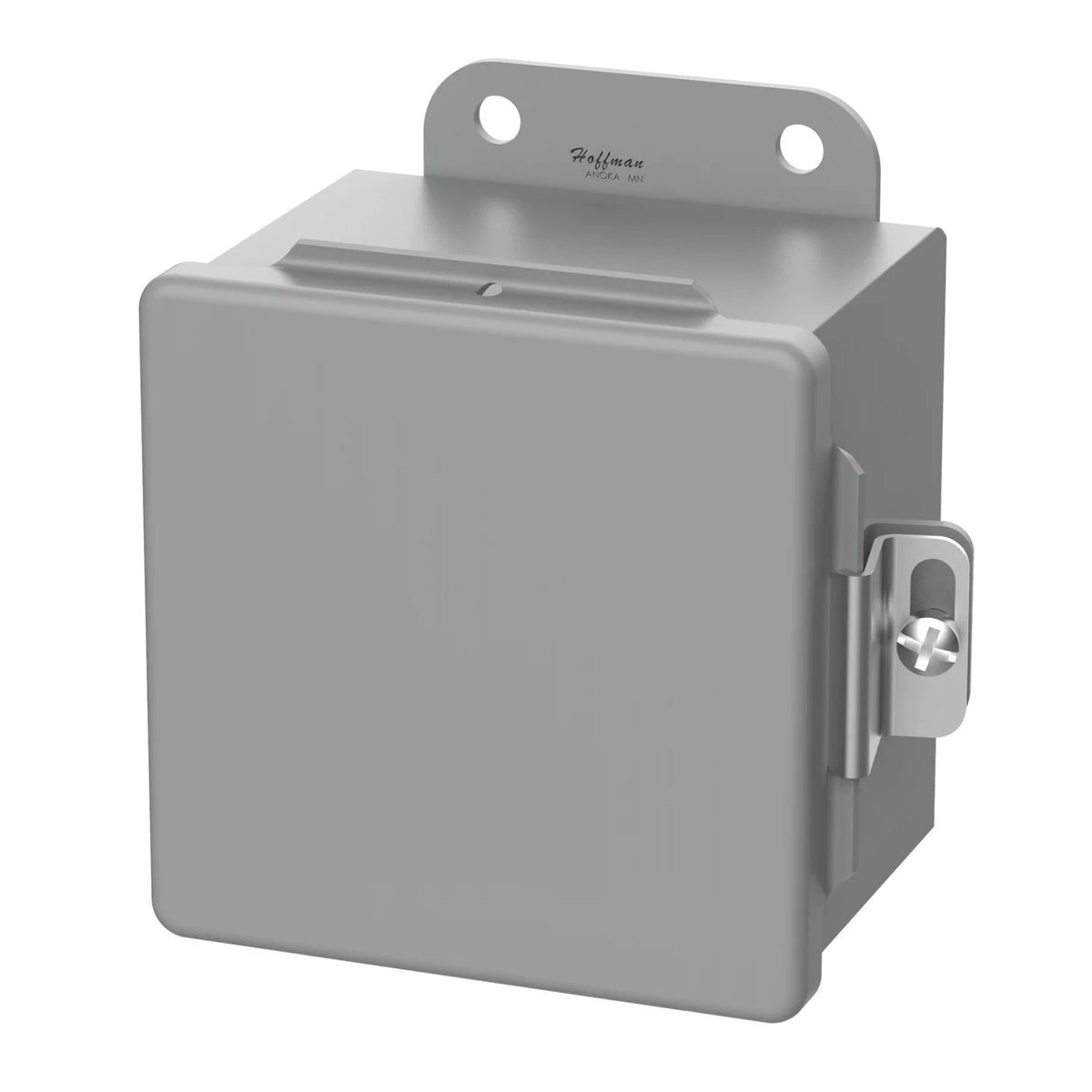

Hoffman A1212CH | Continuous-Hinge-Enclosure-Clamps
Regular price
$303.88
Unit price
Brand: Hoffman
|
SKU:
437651-TMO
Regular price
$303.88
Unit price
Description
Description
Hoffman A1212CH | Continuous-Hinge-Enclosure-Clamps
This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.
Hoffman - A1212CH - Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Specifications
Hoffman - A1212CH - Specifications
| Article Number | 54890 |
|---|---|
| Color Code | ANSI 61 |
| Thickness (T) | 14 ga |
| Panel | A12P12 |
| Height (H) | 12 in |
| Width (W) | 12 in |
| Depth (D) | 6 in |
| Material | Mild Steel |
| Conductive Panel | A12P12G |
| Finish | Powder Coated |
| Color | Gray |
| Panel Size (D x E) | 10.75 x 10.88 in |
| Mounting (G x H) | 12.75 x 10.00 in |
| Overall Dimensions (L x W) | 13.50 x 12.94 in |
| Weight | 13.8 lb |
| UPC | 783510548902 |
