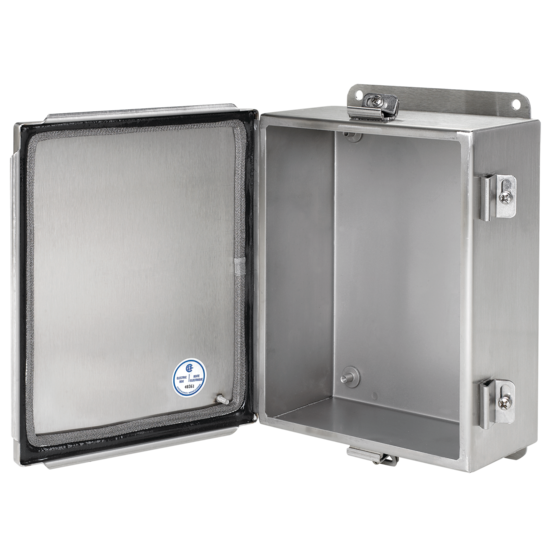

Hoffman A1212CHEMCSS | Continuous Hinge with Clamps Junction Box EMC Type 4X, 12x12x6, SS Type 304
Regular price
$2,316.29
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1212CHEMCSS | Continuous Hinge with Clamps Junction Box EM...
Regular price
$2,316.29
Unit price
Brand: Hoffman
|
SKU:
648936
Regular price
$2,316.29
Unit price
Description
Description
Use this enclosure in corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket adjacent to monel mesh assures water-tight, dust-tight and EMI seal
- Stainless steel screws and clamps
- Removable door with continuous hinge
- Weldnuts provided for mounting optional panels and terminal kits
- Bonding provision on door
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 4, 4X, 12; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E27567
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42184: Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A12P12
- Catalog #: A12P12G
- Catalog #: AL23SS
- Catalog #: APLKJIC6SS
- Catalog #: A12P12SS
- Catalog #: AL18
- Catalog #: AJCDFK
- Catalog #: A12JTMA
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 10.75 x 10.88 in / 273 x 276 mm |
| Overall Dimensions | 13.50 x 12.94 in / 343 x 329 mm |
| Mounting | 12.75 x 10.00 in / 324 x 254 mm |
| Conductive Steel Panel | A12P12G |
| Stainless Steel Panel | A12P12SS |
| Body Thickness | 14 ga / 1.98 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A51SE |
