Brand: Hoffman
|
SKU:
438263

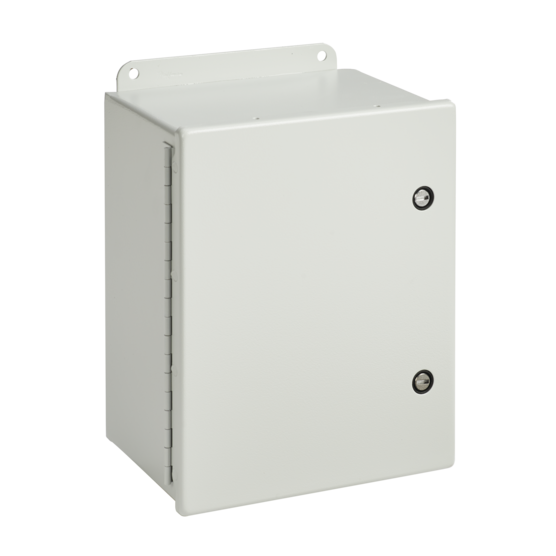

Hoffman A1212CHFL | Continuous Hinge with 1/4-Turn Latch Type 4, 12.00x12.00x6.00, Gray, Steel
Regular price
$362.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1212CHFL | Continuous Hinge with 1/4-Turn Latch Type 4, 12...
Regular price
$362.14
Unit price
Description
Description
This enclosure provides the convenience of quarter-turn latching with an aesthetic, easy-to-maintain light gray textured finish.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94 Listed; Type 4, 12; File No. E61997
- NEMA/EEMAC Type 4 and 12
- IEC 60529, IP 66
Related Accessories
- Catalog #: A12P12
- Catalog #: A12P12G
- Catalog #: APLKJIC
- Catalog #: APLKJIC6SS
- Catalog #: A12P12SS
- Catalog #: AJCDFK
- Catalog #: A12JTMA
- Catalog #: A12JS
Hoffman On Demand Alternatives
- Catalog #: A808CHFL
- Catalog #: A806CHFL
- Catalog #: A606CHFL
- Catalog #: A404CHFL
- Catalog #: A16148CHFL
- Catalog #: A14128CHFL
- Catalog #: A1212CHFL
- Catalog #: A1210CHFL
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Panel Size | 10.75 x 10.88 in / 273 x 276 mm |
| Conductive Panel | A12P12G |
| Panel | A12P12 |
| Mounting | 12.75 x 10.00 in / 324 x 254 mm |
| Overall Dimensions | 13.50 x 12.41 in / 343 x 314 mm |
| Latch Quantity | 2 |
| Color | Light Gray |
| BULLETIN NUMBER | A51FL |
