Brand: Hoffman
|
SKU:
366689

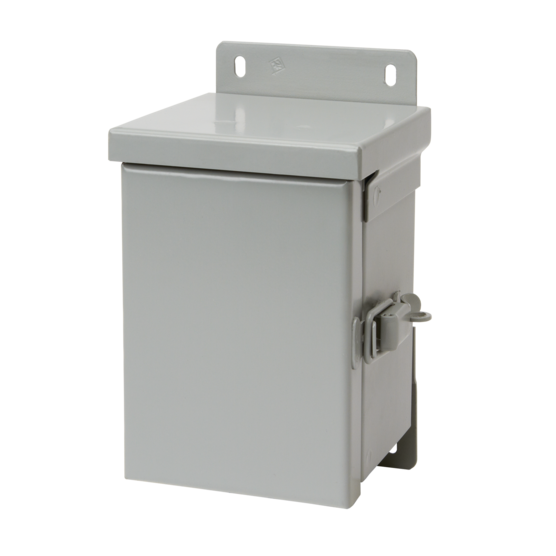

Hoffman A12R106HCR | Hinge-Cover Small Type 3R, 12.00x10.00x6.00, Steel
Regular price
$237.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A12R106HCR | Hinge-Cover Small Type 3R, 12.00x10.00x6.00, S...
Regular price
$237.77
Unit price
Description
Description
Small Drip-Shield Hinged-Cover, Type 3R protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock in its draw-pull catch and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.
Purchase panels separately.
Main Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Plated steel hinge has stainless steel pin
- Weldnuts provided for mounting optional panels
- Provisions for padlocking on zinc-plated draw-pull catch
- Knockouts on bottom of enclosure
- No gasketing
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 10 in / 254 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Panel Size | 10.25 x 8.25 in / 260 x 210 mm |
| Overall Dimensions | 14.00 x 10.81 in / 356 x 275 mm |
| Mounting | 13 in / 330 mm |
| BULLETIN NUMBER | A3SM |
Documents and Downloads
Documents and Downloads
- Hoffman A12R106HCR Data Sheet
- Hoffman A12R106HCR Declaration of Compliance
- Hoffman A12R106HCR Declaration of Conformity, CSA Type 12
- Hoffman A12R106HCR CERT-00070
- Hoffman A12R106HCR Hinge-Cover, Small, Type 3R Instruction Manual
- Hoffman A12R106HCR Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
- Hoffman A12R106HCR Single-Sided Shelf Repainting Instructions
