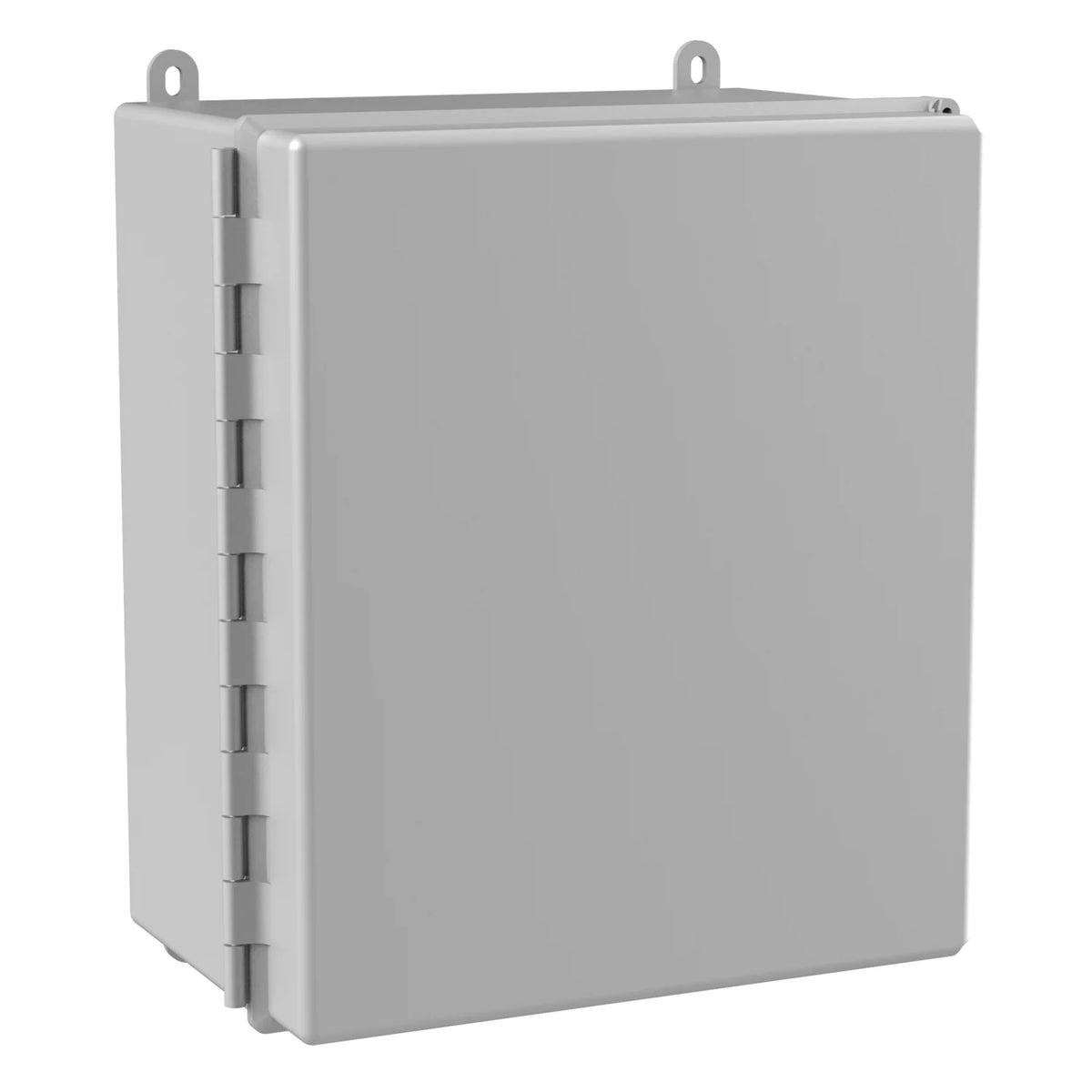

Hoffman A14128CHSCFG | Continuous-Hinge-Screw-Cover-Enclosure
Regular price
$316.66
Unit price
Brand: Hoffman
|
SKU:
3717461-JBT
Regular price
$316.66
Unit price
Description
Description
Hoffman A14128CHSCFG | Continuous-Hinge-Screw-Cover-Enclosure
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.
Hoffman - A14128CHSCFG - Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Specifications
Specifications
Hoffman - A14128CHSCFG - Specifications
| Article Number | 29780 |
|---|---|
| Color Code | RAL 7035 |
| Thickness (T) | 0.16 in |
| Panel Size (D x E) | 12.75 x 10.88 in |
| Height (H) | 14 in |
| Width (W) | 12 in |
| Depth (D) | 8 in |
| Material | Fiberglass |
| Type | Solid Screw Cover |
| Finish | Smooth Matte |
| Color | Light Gray |
| Overall Dimensions (L x W) | 14.55 x 12.55 in |
| Steel Panel | A14P12 |
| Mounting (G x H) | 14.94 x 10.00 in |
| Aluminum Panel | A14P12AL |
| Weight | 9 lb |
