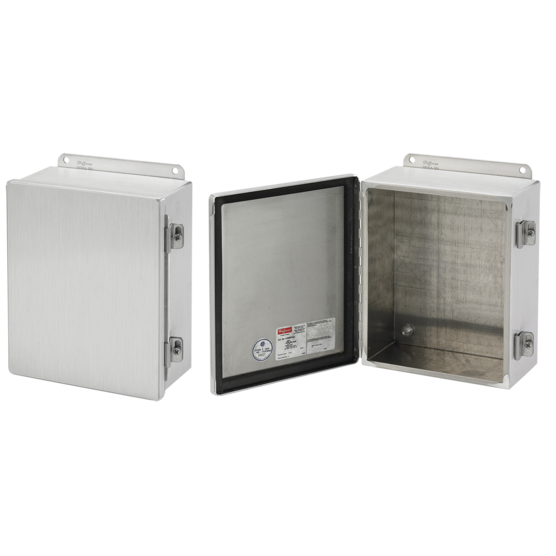

Hoffman A1412CHAL | Continuous Hinge with Clamps Type 12, 14.00x12.00x6.00, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1412CHAL | Continuous Hinge with Clamps Type 12, 14.00x12....
Description
Description
The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight enclosure solution that features a hinged cover that secures on the side opposite the hinge via stainless steel clamps and screws. This enclosure is ideal for protecting components and controls in indoor applications, and maintains a Type-12 rating.
Purchase panels separately
Optional aluminum panels are unpainted, or steel panels are painted white; conductive and stainless panels are also available for most sizes.
Main Features
- Lightweight, Type 12 hinged enclosure.
- Seams continuously welded and ground smooth
- Stainless steel screws and clamps secure cover
- Cover removed by pulling stainless steel continuous hinge pin
- Oil-resistant gasket
- Weldnuts furnished for mounting optional panels and terminal block kits
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 12, 13; File No. E27567
- NEMA/EEMAC Type 12, 13
- CSA File No. 42184: Type 12
- IEC 60529, IP65
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: A14P12
- Catalog #: A14P12AL
- Catalog #: A14P12C
- Catalog #: A14P12G
- Catalog #: A14P12SS
- Catalog #: AL23SS
- Catalog #: APLKJIC6SS
- Catalog #: AL18
Specifications
| Height | 14 in / 356 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Aluminum |
| Panel Size | 12.75 x 10.88 in / 324 x 276 mm |
| Conductive Panel | A14P12G |
| Overall Dimensions | 15.50 x 12.94 in / 394 x 329 mm |
| Aluminum Panel | A14P12AL |
| Steel Panel | A14P12 |
| Mounting | 14.75 x 10.00 in / 375 x 254 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A51A |
