Hoffman A1412SC | Screw Cover Type 12, 14.00x12.00x6.00, Gray, Steel
Regular price
$353.47
Unit price
Description
Description

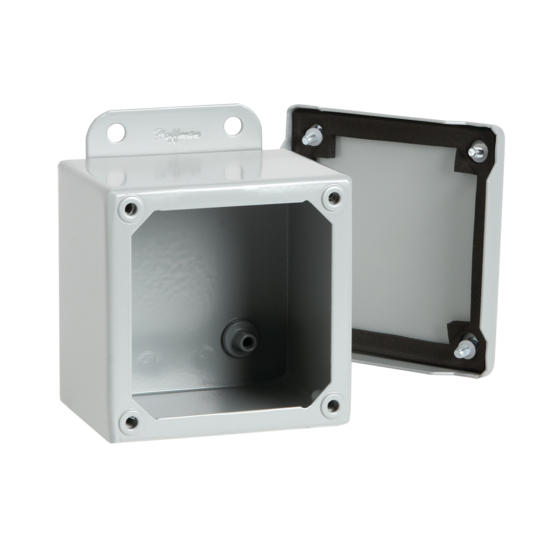

Ideal for a broad range of applications, this enclosure's screw cover is secured in each corner for a positive seal but easily removed for modifications.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Bonding provision on cover
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- External wall-mounting brackets for easy installation
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27525
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27525
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC: Type 12 and 13
- CSA, File No. 42184: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: A14P12
- Catalog #: A14P12AL
- Catalog #: A14P12G
- Catalog #: APLKJIC
- Catalog #: APLKJIC6SS
- Catalog #: AJCDFK
- Catalog #: A14P12SS
- Catalog #: A12JTMA
Hoffman On Demand Alternatives
- Catalog #: A808SC
- Catalog #: A806SC
- Catalog #: A606SC
- Catalog #: A604SC
- Catalog #: A404SC
- Catalog #: A1614SC
- Catalog #: A1412SC
- Catalog #: A1212SC
Specifications
| Height | 14 in / 356 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Panel | A14P12 |
| Conductive Panel | A14P12G |
| Panel Size | 12.75 x 10.88 in / 324 x 276 mm |
| Mounting | 14.75 x 10.00 in / 375 x 254 mm |
| Overall Dimensions | 15.50 x 12.28 in / 394 x 312 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A51SC |
