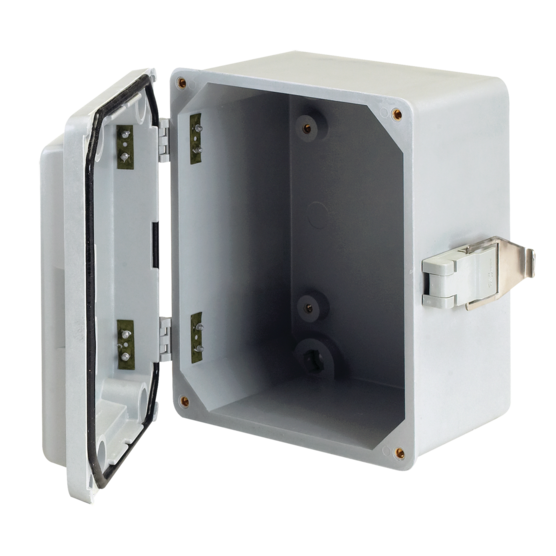

Hoffman A16128JFGR | Screw Cover, Type 4X, 15.5x12.0x8.2, Fiberglass
Description
Description
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With HOFFMAN's products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.
Main Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Fiberglass material is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Threaded internal bosses provided for mounting optional panels and terminal block kits
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
- Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
- A Type 316L stainless steel padlock hasp is furnished with each enclosure
- Sealing washers are furnished with enclosure
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;
- File No. E61997
- Enclosure flammability evaluated per UL 508A
- Window flammability evaluated per UL 508A
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 3R, 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| Usage | Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications. |
| Cover Style | Solid Cover |
| Latch Style | Screws |
| Panel Size | 12.75 x 10.88 in / 324 x 276 mm |
| Aluminum Panel | A14P12AL |
| Inside Dimensions | 15.50 x 12.00 x 8.19 in / 394 x 305 x 208 mm |
| Steel Panel | A14P12 |
| BULLETIN NUMBER | A50 |
