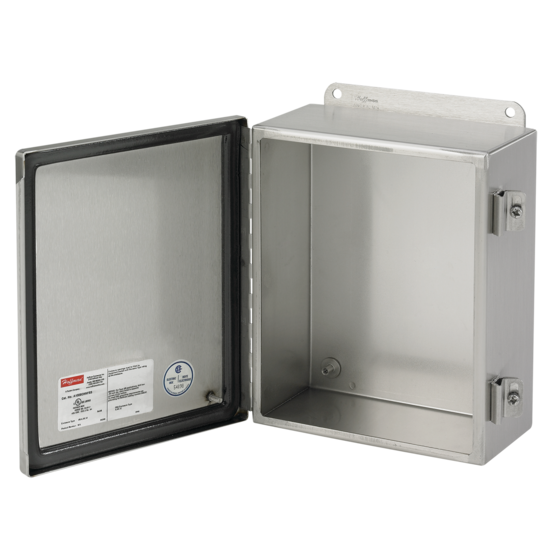

Hoffman A1614CHNFSS6 | Continuous Hinge with Clamps Junction Box Type 4X, 16x14x6, SS Type 316
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A1614CHNFSS6 | Continuous Hinge with Clamps Junction Box Ty...
Description
Description
Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Stainless steel screws and clamps
- Pull stainless steel continuous hinge pin to remove door
- Weldnuts provided for mounting optional panels and terminal block kits
- Bonding provision on door and body
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R, 4, 4X, 12; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E27567
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42184: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: A16P14
- Catalog #: A16P14G
- Catalog #: A16P14AL
- Catalog #: AL23SS
- Catalog #: APLKJIC6SS
- Catalog #: A16P14SS
- Catalog #: AL18
- Catalog #: AJCDFK
Hoffman On Demand Alternatives
- Catalog #: A8064CHNFSS6
- Catalog #: A8064CHNFSS
- Catalog #: A606CHNFSS
- Catalog #: A6044CHNFSS
- Catalog #: A1614CHNFSS6
- Catalog #: A1614CHNFSS
- Catalog #: A1412CHNFSS6
- Catalog #: A1412CHNFSS
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 14 in / 356 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 316L |
| Panel Size | 14.75 x 12.88 in / 375 x 327 mm |
| Conductive Panel | A16P14G |
| Overall Dimensions | 17.50 x 14.94 in / 445 x 379 mm |
| Steel Panel | A16P14 |
| Mounting | 16.75 x 12.00 in / 425 x 305 mm |
| Stainless Steel Type | 316L |
| Body Thickness | 14 ga / 1.98 mm |
| BULLETIN NUMBER | A51S |
