Hoffman A16H1608ALLP | Continuous Hinge with Clamps LP Type 4X, 16.00x16.00x8.00, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A16H1608ALLP | Continuous Hinge with Clamps LP Type 4X, 16....
Description
Description

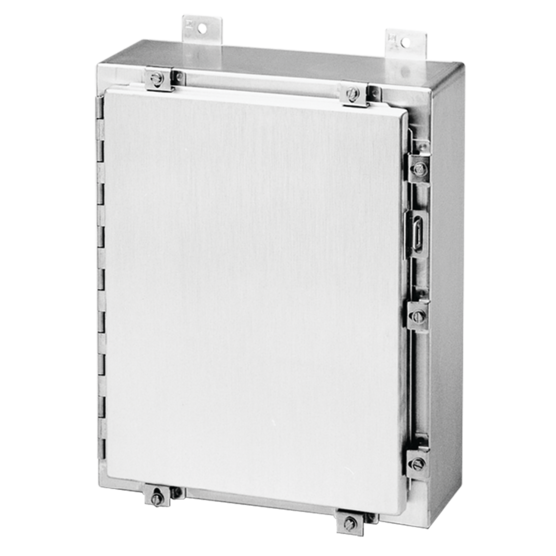

The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution that features a hinged cover that secures on the three, non-hinged sides via stainless steel clamps and screws. This enclosure is ideal for protection of components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants, and marine environments.
Purchase panels separately
Optional aluminum panels are unpainted, or steel panels are painted white; conductive and stainless panels are also available for most sizes.
Main Features
- Lightweight, Type 4x hinged enclosure.
- Seams continuously welded and ground smooth
- Rolled lip around three sides of door and all sides of enclosure opening
- Stainless steel door clamp assemblies
- Door is easily removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Hasp and staple for padlocking
- Tapped pads provided for mounting optional panels; panel screws are plated
- Oil-resistant gasket
- Enclosures are unpainted; door front has a smooth, brushed finish
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AL16
- Catalog #: A16P16
- Catalog #: A16P16AL
- Catalog #: A16P16G
- Catalog #: A16P16SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK53NFNM
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 16 in / 406 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Aluminum |
| Panel Size | 13.00 x 13.00 in / 330 x 330 mm |
| Conductive Panel | A16P16G |
| Aluminum Panel | A16P16AL |
| Steel Panel | A16P16 |
| Panel Mounting Stud Quantity | 4 |
| Data Pocket Size | 6.00 x 6.00 in / 152 x 152 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A4A |
