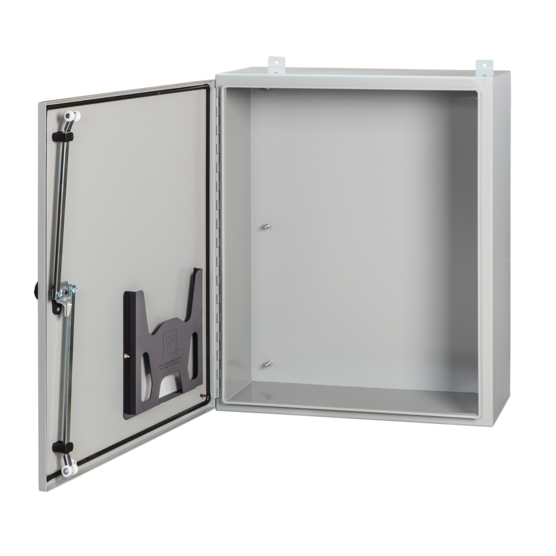

Hoffman A16H16ALP3PT | Continuous Hinge with 3-Point Latch Type 4, 16.00x16.00x6.00, Gray, Steel
Regular price
$1,041.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A16H16ALP3PT | Continuous Hinge with 3-Point Latch Type 4, ...
Regular price
$1,041.63
Unit price
Description
Description
These time-tested, single-door enclosures feature HOFFMAN's exclusive padlocking PowerGlide Handle with 3-point latching for quick and convenient access. Ideal for indoor and outdoor applications, these rigid-bodied enclosures provide superior ease-of-access without sacrificing a secure seal.
Purchase panels separately.
Door interior is ANSI 61 gray while the body interior is white.
Main Features
- Internal 3-point latch and padlocking PowerGlide Handle for quick, secure access
- Seamless foam-in-place gasket ensures a continuous seal
- 90-degree body flange opening channels away liquids
- External, welded-on mounting feet for easy installation
- Continuous hinge provides strength and ruggedness
- Removable heavy gauge stainless steel continuous hinge pin
- Seems continuously welded and ground smooth
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997
- NEMA/EEMAC Type 3, 4, 12, and 13
- CSA, File No. 42186: Type 4 and 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A16P16
- Catalog #: A16P16G
- Catalog #: APWK116NFNM
- Catalog #: APWK53NF
- Catalog #: APWK53NFNM
- Catalog #: APWK53NFSS
- Catalog #: APWK711NFSS
- Catalog #: APWK95NF
Hoffman On Demand Alternatives
- Catalog #: A72H36DLP3PT
- Catalog #: A60H36FLP3PT
- Catalog #: A60H36DLP3PT
- Catalog #: A48H36FLP3PT
- Catalog #: A48H36DLP3PT
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 16 in / 406 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Data Pocket | Small |
| Panel | A16P16 |
| Conductive Panel | A16P16G |
| BULLETIN NUMBER | A4W3 |
