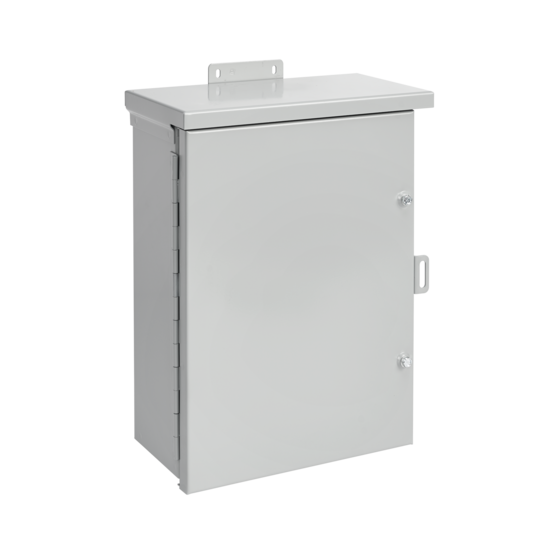

Hoffman A18R186HCR | Hinge-Cover Medium Type 3R, 18.00x18.00x6.00, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A18R186HCR | Hinge-Cover Medium Type 3R, 18.00x18.00x6.00, ...
Description
Description
Medium Drip-Shield Hinged-Cover, Type 3R, protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock and collar studs for optional panel mounting. These enclosures have a size range of 16 x 12 x 6-in. to 60 x 36 x 12-in.
Purchase panels separately.
Panel edges are flanged when greater than 30 inches (762mm).
Main Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- 16-gauge plated steel continuous hinge has stainless steel pin
- Cover fastened securely with captive plated steel screws
- Collar studs provided for mounting optional panels
- Hasp and staple provided for padlocking
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: A18P18
- Catalog #: A18P18PP
- Catalog #: AGS816
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
- Catalog #: AGS808
- Catalog #: APWK1711NF
Specifications
| Height | 18 in / 457 mm |
|---|---|
| Width | 18 in / 457 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Panel Size | 15.00 x 15.00 in / 381 x 381 mm |
| Mounting | 19.00 x 13.00 in / 483 x 330 mm |
| BULLETIN NUMBER | A3M |
Documents and Downloads
Documents and Downloads
- Hoffman A18R186HCR Declaration of Compliance
- Hoffman A18R186HCR CERT-00066
- Hoffman A18R186HCR CE-00010
- Hoffman A18R186HCR Hinge-Cover, Medium, Type 3R Instruction Manual
- Hoffman A18R186HCR Single-Sided Shelf Repainting Instructions
- Hoffman A18R186HCR Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
