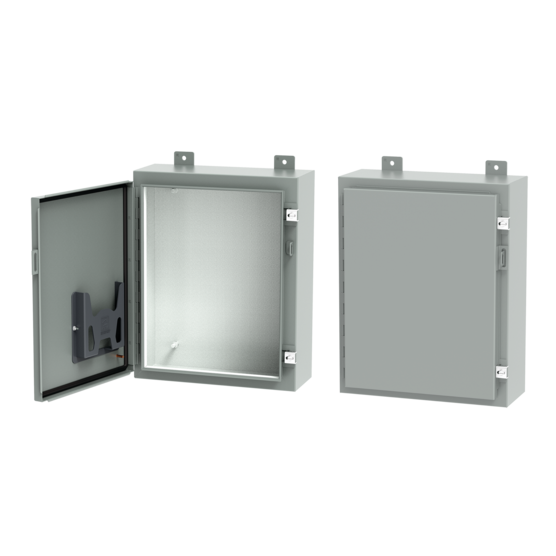

Hoffman A201208LP | Continuous Hinge with Clamps LP, Type 12, 20.00x12.00x8.00, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A201208LP | Continuous Hinge with Clamps LP, Type 12, 20.00...
Description
Description
For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.
Reference the Specification Sheet for Popular Cooling and Accessories tables.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Small Data Pocket is 6.00 in. x 6.00 in. Large Data Pocket is 12.00 in. x 12.00 in.
Catalog number A723612LP has an oil-resistant strip gasket instead of foam-in-place gasket.
Door interior is ANSI 61 gray while the body interior is white.
Main Features
- Seams continuously welded and ground smooth
- External wall-mounting brackets for easy installation
- Formed external return flanges around all sides of enclosure opening
- Screw-down door clamps
- Removable heavy-gauge continuous hinge pin
- Hasp and staple for padlocking
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on door
- Removable door with continuous hinge
- Seamless foam-in-place gasket
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12 and 13
- CSA, File No. 42186: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: LEDPUCK
- Catalog #: A20P12
- Catalog #: A20P12G
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK133NF
- Catalog #: APWK53NF
- Catalog #: APWK53NFNM
Hoffman On Demand Alternatives
- Catalog #: A603616LP
- Catalog #: A603612LP
- Catalog #: A483616LP
- Catalog #: A483612LP
- Catalog #: A423612LP
- Catalog #: A423610LP
- Catalog #: A363612LP
- Catalog #: A363608LP
Specifications
| Height | 20 in / 508 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; IP65 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Panel | A20P12 |
| Conductive Panel | A20P12G |
| Panel Size | 17.00 x 9.00 in / 432 x 229 mm |
| Clamp Quantity | 2 |
| Data Pocket | Small |
| BULLETIN NUMBER | A12 |
