Brand: Hoffman
|
SKU:
10444738

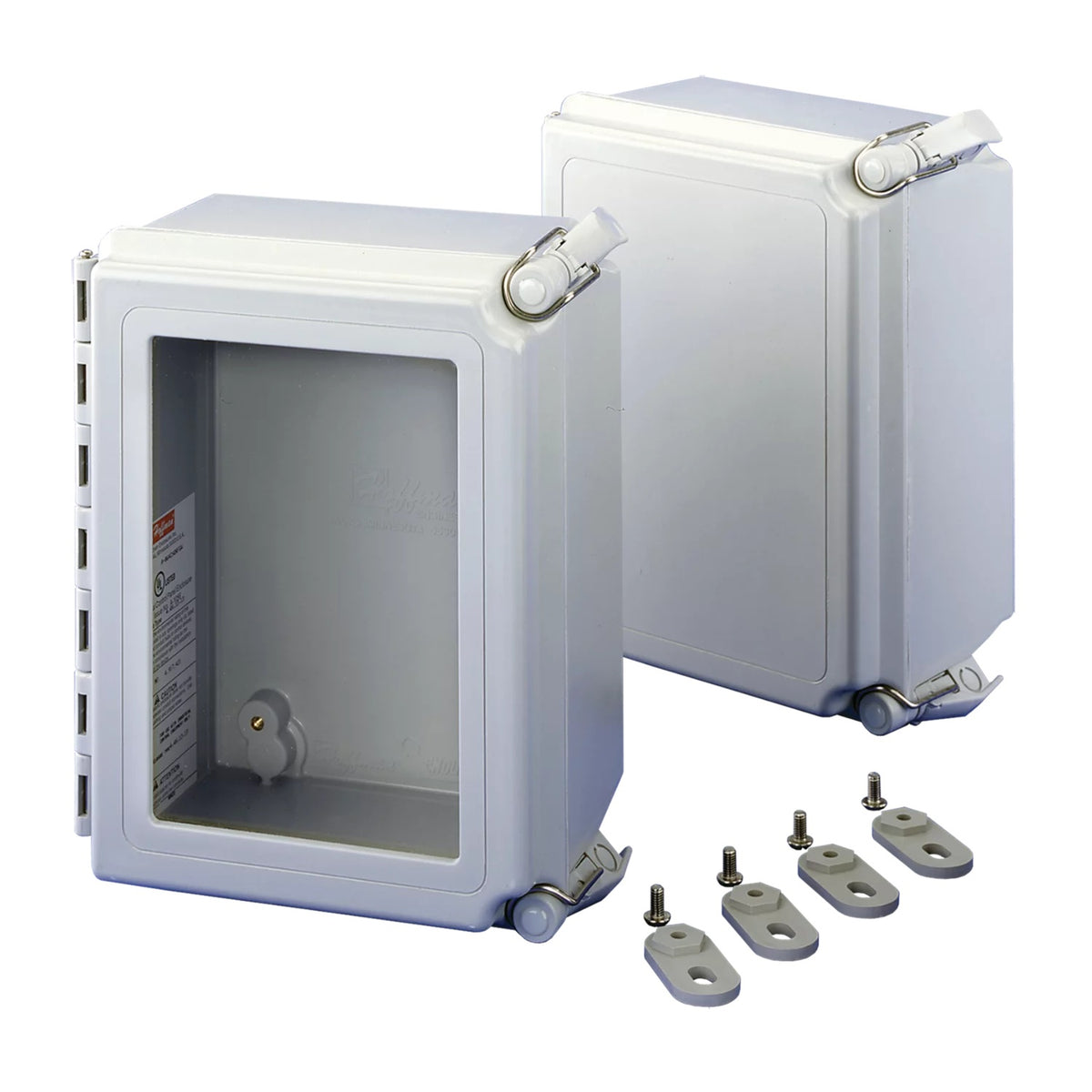

Hoffman A201610CHQRFG | Continuous Hinge QR Cover Enclosure 4X, 20x16x10, Light Gray, Fiberglass
Regular price
$680.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A201610CHQRFG | Continuous Hinge QR Cover Enclosure 4X, 20x...
Regular price
$680.26
Unit price
Description
Description
Hoffman A201610CHQRFG | Continuous Hinge QR Cover Enclosure 4X, 20x16x10, Light Gray, Fiberglass
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.
Hoffman - A201610CHQRFG - Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Specifications
Specifications
Hoffman - A201610CHQRFG - Specifications
| Article Number | 28068 |
|---|---|
| Height (H) | 20in |
| Width (W) | 16in |
| Depth (D) | 10in |
| Article Number | 28068 |
| Height (H) | 20in |
| Width (W) | 16in |
| Depth (D) | 10in |
| Material | Fiberglass |
| Finish | Smooth Matte |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness (T) | 0.12in |
| Panel Size (D x E) | 18.75x14.88in |
| Type | Solid Cover, Quick Release |
| Overall Dimensions (L x W) | 20.58x16.58in |
| Steel Panel | A20P16J |
| Mounting (G x H) | 20.94 x14.00in |
| Aluminum Panel | A20P16JAL |
| Weight | 17.7lb |
| UPC | 783510280680 |
| Standard Packaging Quantity | 1.0 |
| Packing Quantity | 1.0 |
