Brand: Hoffman
|
SKU:
649085

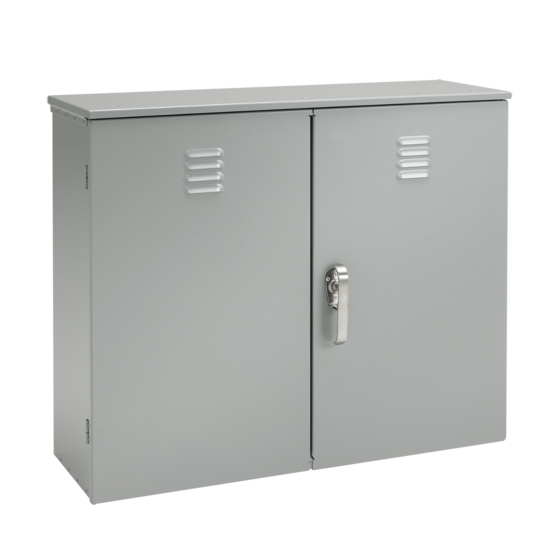

Hoffman A203012BGECT | Vented Double Door, 20.00x30.00x12.00, Steel
Regular price
$665.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A203012BGECT | Vented Double Door, 20.00x30.00x12.00, Steel
Regular price
$665.24
Unit price
Description
Description
CT Cabinet, Vented Double-Door, Type 3R are used for mounting instrument current transformer, have a welded mounting channel, have a ventilation provision with insect protection, a padlock feature, and are available in a variety of sizes, models to fit a wide range of applications.
A364214BGECT and A423614BGECT aluminum models are .100-inch (2.5mm) thick.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Double door with 3-point latch that includes padlock feature
- Lift-off hinges for removable doors
- Ventilating louvers with insect barrier
- Welded 1.625 x 1.625 in. mounting channel
Specifications
Specifications
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 20 in / 508 mm |
|---|---|
| Width | 30 in / 762 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Construction | Galvanized; spot-welded |
| Weight | 70 lb |
| BULLETIN NUMBER | ARCT |
