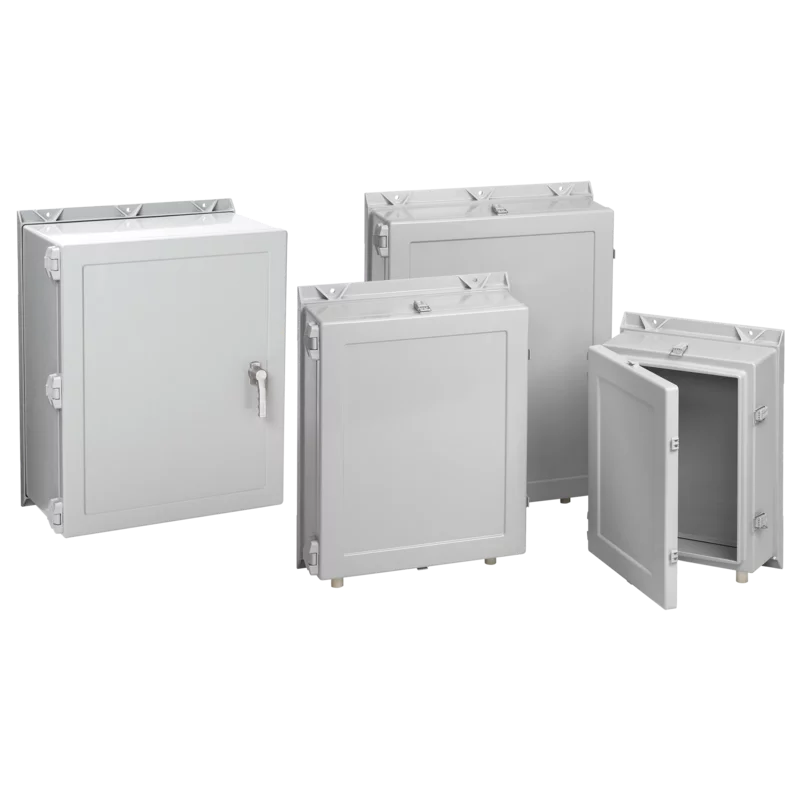

Hoffman A20H2008GQRLP | Hinge Cover Enclosure Quick-Release Type 4X, 20.19x20.25x8.00, Gray, Fiberglass

Hoffman - A20H2008GQRLP - Features

• Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
• Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
• Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
• Seams are sealed; no holes or knockouts
• Gasket assures water-tight and dust-tight seal
• Fiberglass material is easily punched, drilled, filed or sawed
• Data pocket is high-impact thermoplastic
• Copper-flashed steel collar studs for mounting optional panels and terminal block kits
• Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories
• BULLETIN NUMBER: A17WM
• Industry Standards:
• UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
• cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
• Enclosure flammability evaluated per UL 508A
• NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
• IEC 60529, IP66
• Meets NEMA Type 3RX requirements
