Brand: Hoffman
|
SKU:
A2420AT1PP

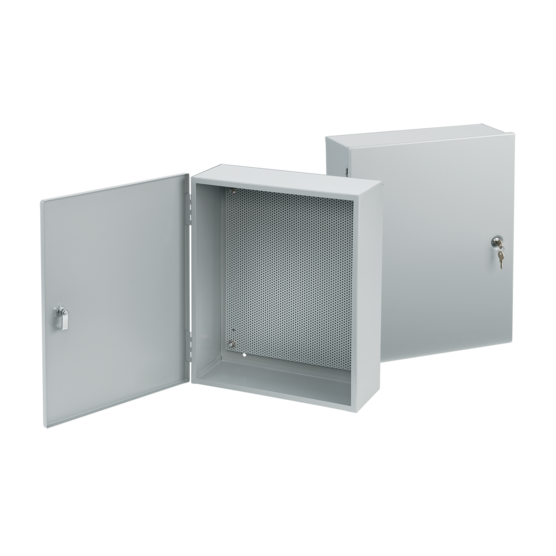

Hoffman A2420AT1PP | Hinged-Cover with Perforated Panel Type 1, 24.00x20.00x6.62, Gray, Steel
Regular price
$535.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A2420AT1PP | Hinged-Cover with Perforated Panel Type 1, 24....
Regular price
$535.26
Unit price
Description
Description
Hinged-Cover with Perforated Panel, Type 1, ships with pre-installed panel that accepts self-tapping screws and eliminates the need to measure, mark and drill when mounting components, which results in labor and time savings.
Main Features
- Door has key lock quarter-turn latch; two keys included
- Select models have concentric knockouts on four sides
- Includes removable, 16-gauge, ANSI 61 gray, perforated panel
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27567
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
- NEMA/EEMAC Type 1
- IEC 60529, IP30
Specifications
| Panel Size | 21.00 x 18.50 in / 533 x 470 mm |
|---|---|
| Mounting Holes | 21.88 x 15.00 in / 556 x 381 mm |
| Knockout Pattern Along A Sides | A-B-C-D-E-F-G-H-I |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Weight | 35.4 lb |
| BULLETIN NUMBER | A1PP |
