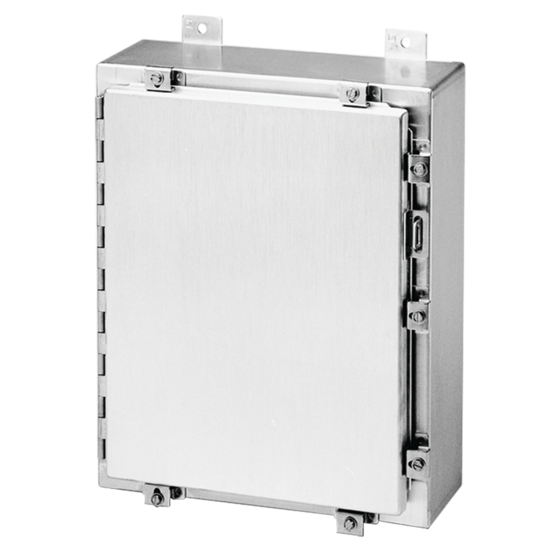

Hoffman A24H2010ALLP | Continuous Hinge with Clamps LP Type 4X, 24.00x20.00x10.00, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A24H2010ALLP | Continuous Hinge with Clamps LP Type 4X, 24....
Description
Description
The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution that features a hinged cover that secures on the three, non-hinged sides via stainless steel clamps and screws. This enclosure is ideal for protection of components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants, and marine environments.
Purchase panels separately
Optional aluminum panels are unpainted, or steel panels are painted white; conductive and stainless panels are also available for most sizes.
Main Features
- Lightweight, Type 4x hinged enclosure.
- Seams continuously welded and ground smooth
- Rolled lip around three sides of door and all sides of enclosure opening
- Stainless steel door clamp assemblies
- Door is easily removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Hasp and staple for padlocking
- Tapped pads provided for mounting optional panels; panel screws are plated
- Oil-resistant gasket
- Enclosures are unpainted; door front has a smooth, brushed finish
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AL16
- Catalog #: A24P20
- Catalog #: A24P20G
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
Specifications
| Height | 24 in / 610 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 10 in / 254 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Aluminum |
| Panel Size | 21.00 x 17.00 in / 533 x 432 mm |
| Conductive Panel | A24P20G |
| Aluminum Panel | A24P20AL |
| Steel Panel | A24P20 |
| Panel Mounting Stud Quantity | 4 |
| Clamp Quantity | 5 |
| Data Pocket Size | 12.00 x 12.00 in / 305 x 305 mm |
| BULLETIN NUMBER | A4A |
