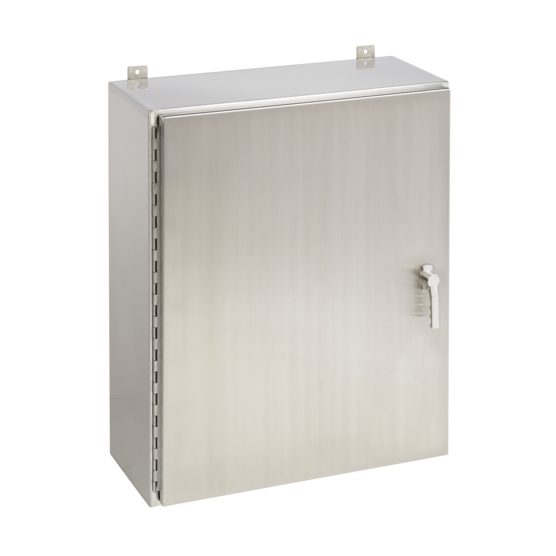

Hoffman A24H2010SSLP3PT | Wallmount 3 Point Latch Type 4X, 24x20x10...
Regular price
$3,638.65
Unit price
Brand: Hoffman
|
SKU:
649179
Regular price
$3,638.65
Unit price
Description
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- IEC 60529, IP66 Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: T150116G152
- Catalog #: A24P20
- Catalog #: A24P20AL
- Catalog #: A24P20G
- Catalog #: A24P20SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
Hoffman On Demand Alternatives
- Catalog #: A60H3616SSLP3PT
- Catalog #: A60H3612SSLP3PT
- Catalog #: A48H3616SSLP3PT
- Catalog #: A48H3616SS6LP3PT
- Catalog #: A48H3612SSLP3PT
- Catalog #: A48H3612SS6LP3PT
- Catalog #: A42H3612SSLP3PT
- Catalog #: A36H3612SSLP3PT
Specifications
| Height | 24 in / 610 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 10 in / 254 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 21.00 x 17.00 in / 533 x 432 mm |
| Conductive Panel | A24P20G |
| Steel Panel | A24P20 |
| Stainless Steel Type | 304 |
| Data Pocket | Small |
| Stainless Steel Panel | A24P20SS6 |
| Color | Unpainted |
| BULLETIN NUMBER | A4SW3 |
