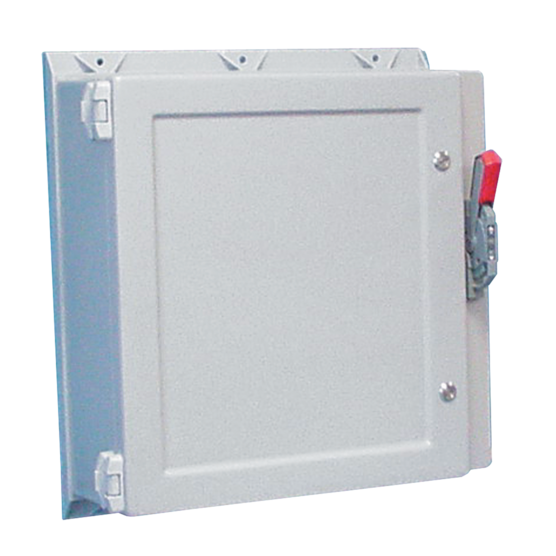

Hoffman A24HS2008GQRLP | Fiberglass Disconnect, Type 4X, 24.25x20.2...
Description
Description
For effective and economical disconnect protection in the harshest corrosive environments, these enclosures provide secure door closure through the use of Type 304 stainless steel slotted quarter-turn latches. Each Fiberglass Disconnect, Type 4X is furnished with bracket affixed to door for attaching disconnect door catch (interlock) and instructions for installing disconnect handle (handle not included).
Purchase panels separately
Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories.
No additional "C" dimensions available
Main Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Seams are sealed; no holes or knockouts
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Fiberglass material is easily drilled, filed or sawed
- Hinges are fiberglass reinforced polyester
- Doors are secured with Type 304 stainless steel slotted quarter-turn latches
- Data pocket is high-impact thermoplastic
- Copper flashed steel collar studs for mounting optional panels and terminal block kits
- Holes provided in body for mounting disconnect operating handle and operating mechanism; disconnect operating handle not included
- Internal grounding provisions for quarter-turn latches
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: TE162024011
- Catalog #: A24P20
- Catalog #: A24P20G
- Catalog #: A24P20AL
- Catalog #: A24P20C
- Catalog #: A24P20SS6
- Catalog #: APWK116NFNM
- Catalog #: APWK53NFNM
Specifications
| Height | 24.25 in / 616 mm |
|---|---|
| Width | 20.25 in / 514 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 4X; IP66 |
| Material | Fiberglass |
| Finish | Smooth Matte |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 0.12 in / 3 mm |
| Panel Size | 21.00 x 17.00 in / 533 x 432 mm |
| Conductive Panel | A24P20G |
| Mounting | 25.86 x 14.00 in / 657 x 356 mm |
| BULLETIN NUMBER | A17WD |
