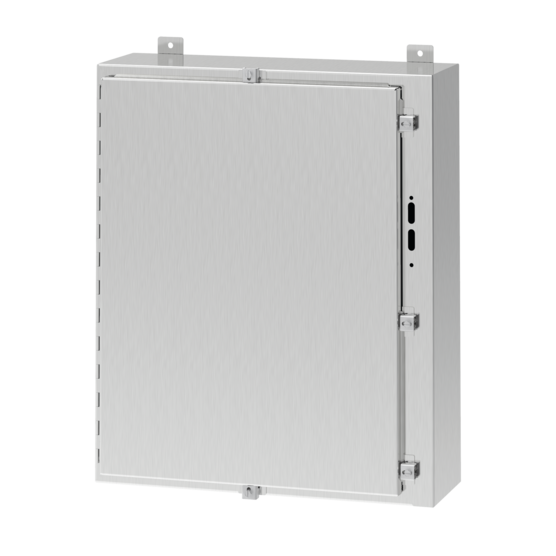

Hoffman A24HS2108SSLP | Wallmount Disconnect Enclosure with Clamps ...
Description
Description
For disconnect applications in which a clamp-secured door is preferred, this enclosure features clamps on three sides to keep liquids and contaminants from entering and a preferred cutout that accepts major brand disconnect switches and circuit breakers.
Each Disconnect Enclosure with Clamps, Type 4X is furnished with adjustable door interlock bracket fastened to door, instructions to locate and install disconnect switches, circuit breakers and operating mechanisms.
Purchase panels separately.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
Main Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door; ground stud on body
- All exterior hardware on Type 316L enclosures matches the enclosure material
- Adjustable door interlock bracket fastened to door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: APWK53NFSS
- Catalog #: AS050SS
- Catalog #: T150116G152
Specifications
| Height | 24 in / 610 mm |
|---|---|
| Width | 21.38 in / 543 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 21.00 x 17.00 in / 533 x 432 mm |
| Panel | A24P20 |
| Conductive Panel | A24P20G |
| Clamp Quantity | 5 |
| Data Pocket Size | 6.00 x 6.00 in / 152 x 152 mm |
| Color | Unpainted |
| Finish | Brushed #4 |
| BULLETIN NUMBER | A19S |
