Brand: Hoffman
|
SKU:
649250

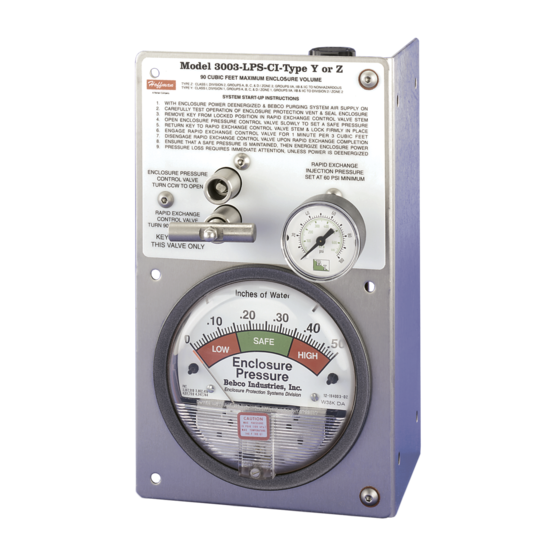

Hoffman A3003YZHM | Large-Volume Type Y and Z Purging/Pressurization System, 90CF, Horizontal Mount
Regular price
$5,103.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A3003YZHM | Large-Volume Type Y and Z Purging/Pressurizatio...
Regular price
$5,103.00
Unit price
Brand: Hoffman
|
SKU:
649250
Regular price
$5,103.00
Unit price
Description
Description
Large-Volume Purging/Pressurization System supplies one or more enclosures, up to 90 cubic feet total volume, with a protective gas supply, thus allowing the use of general-purpose enclosures in certain Class 1, Division 1 and 2 hazardous locations.
Main Features
- Vertical mount (VM) or horizontal mount (HM)
- 90 cubic feet maximum enclosure volume
- System face plate and mounting plate: Type 316L stainless steel
- Regulator body: zinc with enamel finish
- Manifold body: anodized aluminum with Type 316 stainless steel valves
- Enclosure pressure gauge: aluminum with enamel finish
- Gas supply gauge: poly case and nickel-plated tube
- Enclosure protection vent—90 degree
- Rapid exchange control valve
- Enclosure supply and enclosure reference bulkhead fittings: Type 316 stainless steel
- Fastener hardware
Specifications
Specifications
Industry Standards
- Classified by Underwriters Laboratories, NFPA 496-1993
- (Volume up to 90 cubic feet)
- 3003 LPS
- NEC Type Y Class 1, Division 1, Groups A, B, C and D / Zone 1 Groups IIA, IIB and IIC to Division 2 / Zone 2
- NEC Type Z Class I, Division 2, Groups A, B, C and D / Zone 2 Groups IIA, IIB and IIC to Nonhazardous
Specifications
| Width | 10.75 mm / 273 mm |
|---|---|
| Height | 5.5 in / 140 mm |
| Volume | 90 ft³ / 2.55 |
| Weight | 4.54 kg / 10 lb / 12.6 lb |
| Color | Unpainted |
| Finish | Tumble |
| Material | Stainless Steel 316L |
| Thickness | 14 ga / 1.98 mm |
| BULLETIN NUMBER | HL |
