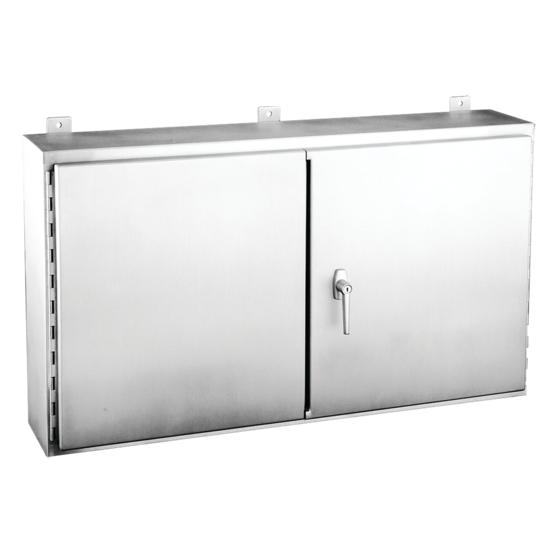

Hoffman A304810WFSSLP | Wallmount, 2 Door, 3 Point Latch, Type 12, 30x48x10, SS 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A304810WFSSLP | Wallmount, 2 Door, 3 Point Latch, Type 12, ...
Description
Description
For indoor applications requiring stainless steel, enclosure features overlapping doors and a centerpost-free interior for easy panel and component installation. The enclosure is secured by a single key-locking handle and three-point latching.
Purchase panels separately. Optional stainless steel panels are available for most sizes.
Enclosure backs for A42H4212WFSSLP3PT, A42H4812WFSSLP3PT and A42H6012WFSSALP3PT have internal stiffeners.
A48H4812WFSSLP3PT is 14 gauge with a 12 gauge back.
Main Features
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Rolled lip around all sides of enclosure body opening
- Gasketed overlapping doors eliminate need for centerpost
- External mounting brackets
- Plated steel 3-point latching mechanism and keylocking handle
- Easily removable doors by pulling heavy-gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on doors; grounding studs on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: AS050SS
- Catalog #: A48P30
- Catalog #: A48P30G
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
- Catalog #: APWK2315NFSS
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Width | 48 in / 1219 mm |
| Depth | 10 in / 254 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Stainless Steel 304 |
| Panel Size | 45.00 x 27.00 in / 1143 x 686 mm |
| Conductive Panel | A48P30G |
| Panel | A48P30 |
| Panel Gauge | 12 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 2 mm |
| BULLETIN NUMBER | A12SW |
