Brand: Hoffman
|
SKU:
649272

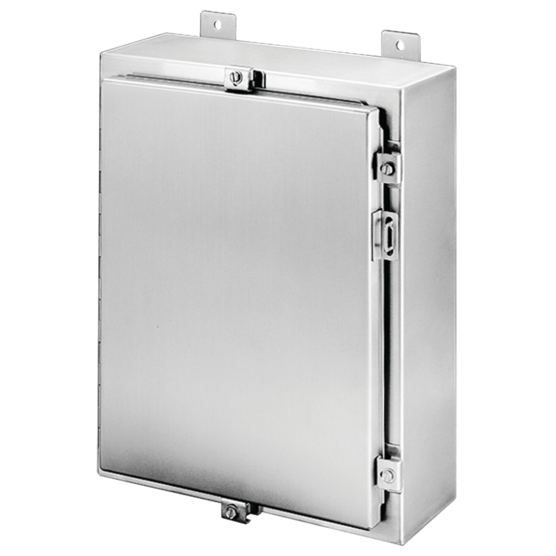

Hoffman A30H2008SSLP | Wallmount Hinged with NEMA Clamps Type 4X, 30x20x8, SS Type 304
Regular price
$3,652.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A30H2008SSLP | Wallmount Hinged with NEMA Clamps Type 4X, 3...
Regular price
$3,652.22
Unit price
Description
Description
For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants.
Purchase panels separately. Optional composite and aluminum panels are available for most sizes.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AL16
- Catalog #: AS050SS
- Catalog #: TE162024011
- Catalog #: A30P20
- Catalog #: A30P20G
- Catalog #: A30P20SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
Hoffman On Demand Alternatives
- Catalog #: A60H3612SSLP
- Catalog #: A48H3616SSLP
- Catalog #: A48H3612SSLP
- Catalog #: A48H3612SS6LP
- Catalog #: A36H3612SSLP
- Catalog #: A36H3612SS6LP
- Catalog #: A36H3016SSLP
- Catalog #: A36H3012SSLP
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 27.00 x 17.00 in / 686 x 432 mm |
| Steel Panel | A30P20 |
| Stainless Steel Type | 304 |
| Data Pocket | Small |
| Conductive Steel Panel | A30P20G |
| Stainless Steel Panel | A30P20SS6 |
| Clamp Quantity | 5 |
| BULLETIN NUMBER | A4S |
Documents and Downloads
Documents and Downloads
- Hoffman A30H2008SSLP Data Sheet
- Hoffman A30H2008SSLP Declaration of Conformity, CSA Type 12
- Hoffman A30H2008SSLP EU Declaration of Conformity, Type 4X Stainless Steel Industrial Control Enclosures
- Hoffman A30H2008SSLP Declaration of Compliance
- Hoffman A30H2008SSLP Enclosure Alterations
- Hoffman A30H2008SSLP Lockwasher and Hub Installation Instruction Manual
- Hoffman A30H2008SSLP Large Enclosure Handling Instructions
- Hoffman A30H2008SSLP Grounding Kit Instruction Manual
