Brand: Hoffman
|
SKU:
649301

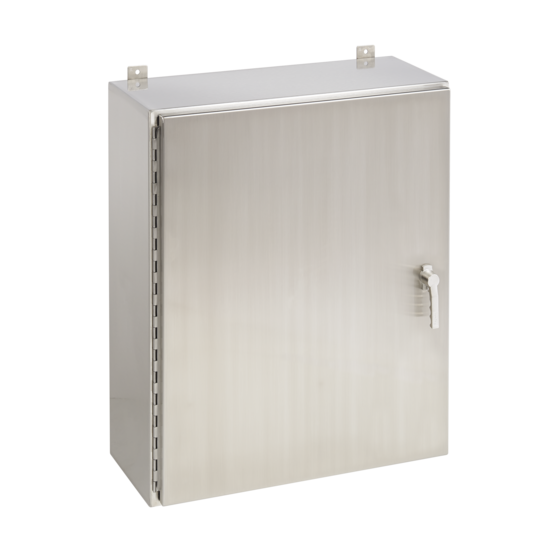

Hoffman A30H3008SS6LP3PT | Wallmount, 3 Point Latch, Type 4X, 30x30x8, SS 316
Regular price
$5,868.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A30H3008SS6LP3PT | Wallmount, 3 Point Latch, Type 4X, 30x30...
Regular price
$5,868.51
Unit price
Description
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- IEC 60529, IP66 Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: T150116G152
- Catalog #: A30P30
- Catalog #: A30P30G
- Catalog #: A30P30SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
Hoffman On Demand Alternatives
- Catalog #: A60H3616SSLP3PT
- Catalog #: A60H3612SSLP3PT
- Catalog #: A48H3616SSLP3PT
- Catalog #: A48H3616SS6LP3PT
- Catalog #: A48H3612SSLP3PT
- Catalog #: A48H3612SS6LP3PT
- Catalog #: A42H3612SSLP3PT
- Catalog #: A36H3612SSLP3PT
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Width | 30 in / 762 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Panel Size | 27.00 x 27.00 in / 686 x 686 mm |
| Conductive Panel | A30P30G |
| Steel Panel | A30P30 |
| Stainless Steel Type | 316L |
| Data Pocket | Large |
| Stainless Steel Panel | A30P30SS6 |
| Color | Unpainted |
| BULLETIN NUMBER | A4SW3 |
Documents and Downloads
Documents and Downloads
- Hoffman A30H3008SS6LP3PT CERT-00084
- Hoffman A30H3008SS6LP3PT EU Declaration of Conformity, Type 4X Stainless Steel Industrial Control Enclosures
- Hoffman A30H3008SS6LP3PT Declaration of Compliance
- Hoffman A30H3008SS6LP3PT Lockwasher and Hub Installation Instruction Manual
- Hoffman A30H3008SS6LP3PT Large Enclosure Handling Instructions
- Hoffman A30H3008SS6LP3PT Enclosure Alterations
- Hoffman A30H3008SS6LP3PT Data Sheet
