Brand: Hoffman
|
SKU:
649336

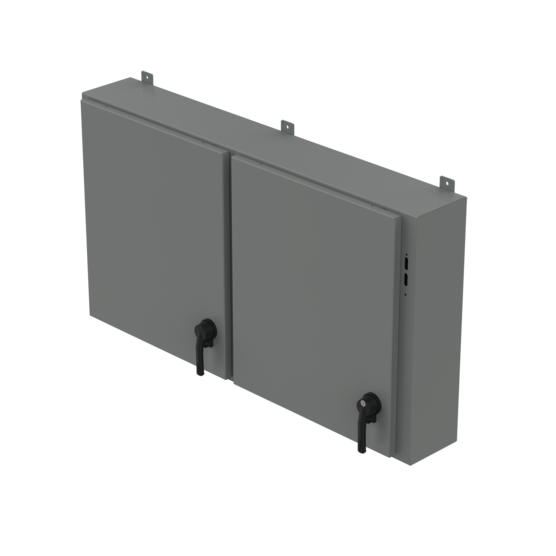

Hoffman A30X2E5408 | Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 30.00x54.50x8.00
Regular price
$2,963.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A30X2E5408 | Low-Profile, One- to Five-Door Disconnect Encl...
Regular price
$2,963.27
Unit price
Description
Description
Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on master door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: AS050
- Catalog #: T150116G120
Specifications
| Height | 30 in / 762 mm |
|---|---|
| Finish | Powder Coated |
| Width | 54.5 in / 1384 mm |
| Color | Gray |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; IP55 |
| Material | Mild Steel |
| Body Stiffener | 0 |
| Panel | A25P48 |
| Conductive Panel | A25P48G |
| Panel Quantity | 1 |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A26M2 |
