Brand: Hoffman
|
SKU:
445742

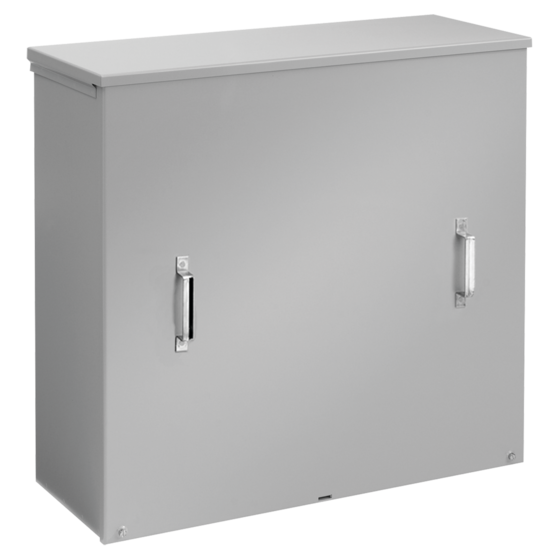

Hoffman A363611CT | Current Transformer Screw Cover, 36.00x36.00x11.00, Steel
Regular price
$804.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A363611CT | Current Transformer Screw Cover, 36.00x36.00x11...
Regular price
$804.04
Unit price
Description
Description
CT Cabinet, Screw-Cover, Type 3R provides outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with captivated plated steel screws along bottom edge
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting studs on enclosure body
- Mounting holes on back of enclosure
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
- NEMA Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 11 in / 279 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 12 ga / 2.66 mm |
| Door Thickness | 12 ga / 2.66 mm |
| Weight | 120 lb |
| BULLETIN NUMBER | A90CT |
