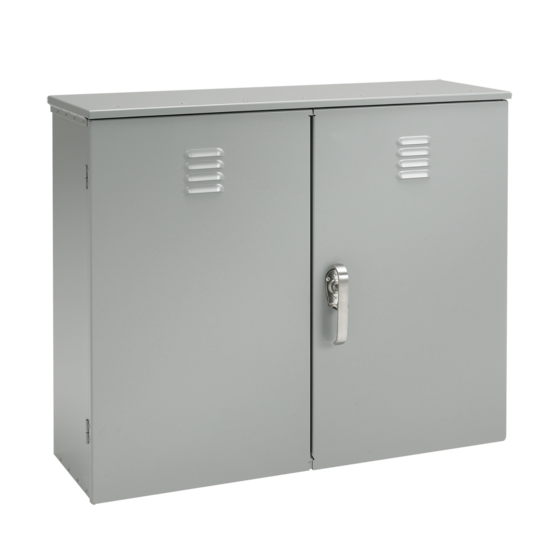

Hoffman A364214BGECT | Vented Double Door, 36.00x42.00x14.00, Gray, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A364214BGECT | Vented Double Door, 36.00x42.00x14.00, Gray,...
Description
Description
CT Cabinet, Vented Double-Door, Type 3R are used for mounting instrument current transformer, have a welded mounting channel, have a ventilation provision with insect protection, a padlock feature, and are available in a variety of sizes, models to fit a wide range of applications.
A364214BGECT and A423614BGECT aluminum models are .100-inch (2.5mm) thick.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Double door with 3-point latch that includes padlock feature
- Lift-off hinges for removable doors
- Ventilating louvers with insect barrier
- Welded 1.625 x 1.625 in. mounting channel
Specifications
Specifications
Related Accessories
- Catalog #: APWK53NFSS
- Catalog #: AS050
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 42 in / 1067 mm |
| Depth | 14 in / 356 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 11 ga / 2.3 mm |
| Construction | Aluminum; riveted |
| Weight | 65 lb |
| BULLETIN NUMBER | ARCT |
