Brand: Hoffman
|
SKU:
649457

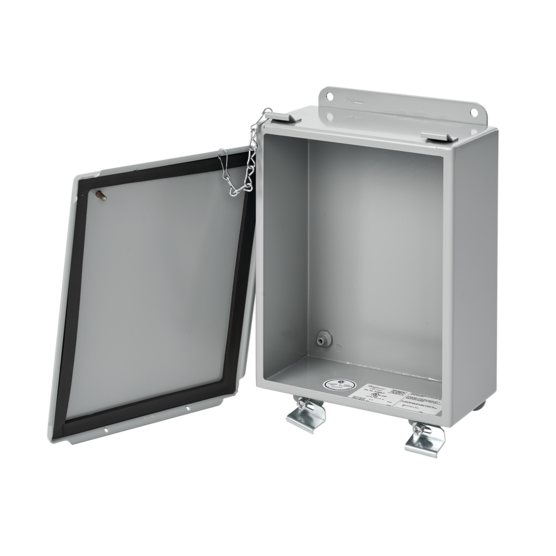

Hoffman A4044LP | Lift-Off Clamp Cover, Type 12, 4.00x4.00x4.00, Gray, Steel
Regular price
$128.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A4044LP | Lift-Off Clamp Cover, Type 12, 4.00x4.00x4.00, Gr...
Regular price
$128.41
Unit price
Description
Description
With a chain-secured, lift-off clamp cover, this enclosure meets basic functionality requirements for housing controls and instrumentation.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Screw-down clamps
- Lift-off cover
- Bonding provision on cover
- Chain holds cover to box when cover is removed
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- External wall-mounting brackets
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27525
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27525
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12 and 13
- CSA, File No. 42184: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: AL23SS
- Catalog #: APLKJIC
- Catalog #: AL23
- Catalog #: APLKJIC6SS
- Catalog #: AL18
- Catalog #: AL17
- Catalog #: AS050
Specifications
| Height | 4 in / 102 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Panel | No Panel |
| Mounting | 4.75 x 2.00 in / 121 x 51 mm |
| Overall Dimensions | 5.50 x 4.57 in / 140 x 116 mm |
| BULLETIN NUMBER | A51LP |
