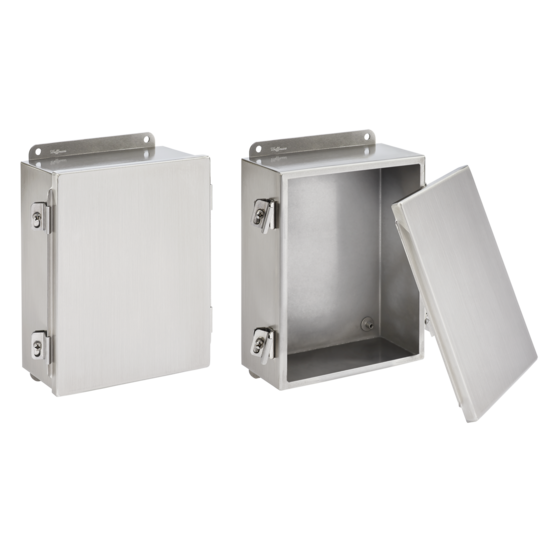

Hoffman A404NFSS6 | Clamp Cover Junction Box, 4X, 4x4x3, SS 316
Description
Description
Used in either corrosive or outdoor applications, Clamp Cover Enclosures combine a seamless foam-in-place gasket with stainless steel screw-down clamps for a consistent and reliable seal, yet the cover is easily removed for access and modifications.
A404NFSS, A404NFSS6, A6044NFSS and A6044NFSS6 are UL 508A Listed.
The remaining catalog numbers are UL 50 Listed.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
Reference the Specification Sheet for Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Stainless steel screws and clamps
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door and body
Specifications
Specifications
Industry Standards
- UL 50 Listed; Type 3R, 4, 4X, 12; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E27525
- UL 508A, 508 Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- CSA File No. 42184: Type 4, 4X, 12
- IEC 60529, IP66
- Meets Type 3RX requirements
Related Accessories
- Catalog #: AL23SS
- Catalog #: APLKJIC6SS
- Catalog #: AL18
Specifications
| Height | 4 in / 102 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 3 in / 76 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 316L |
| Overall Dimensions | 5.50 x 5.38 in / 140 x 137 mm |
| Steel Panel | No Panel |
| Mounting | 4.75 x 2.00 in / 121 x 51 mm |
| Body Thickness | 16 ga / 1.59 mm |
| Color | Unpainted |
| Door Thickness | 16 ga / 1.59 mm |
| Finish | Brushed #4 |
| BULLETIN NUMBER | A51S |
