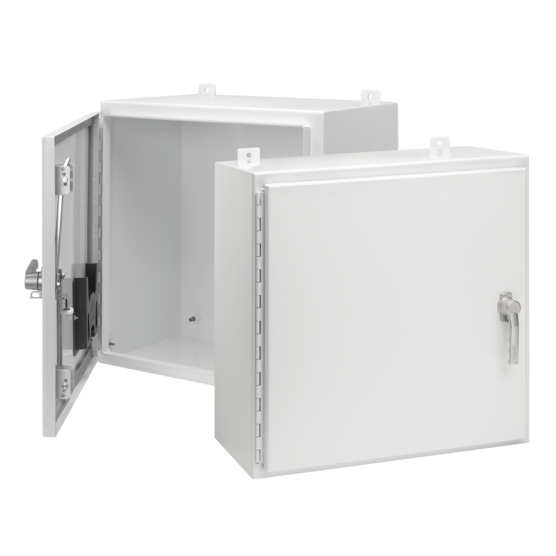

Hoffman A42H3612SSLP3PTW | White Painted 304 SS with 3 Point Latch, Type 4X, 42x36x12
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A42H3612SSLP3PTW | White Painted 304 SS with 3 Point Latch,...
Description
Description
These single-door stainless steel enclosures provide industry leading protection for housing electrical components and controls in outdoor or corrosive environments. White polyester powder reduces absorption of solar radiation, which keeps internal components cooler. HOFFMAN's exclusive Type 316L stainless steel small PowerGlide padlocking handle and internal 3-point latching combine ease of access with security.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Panels have a formed flange along any side longer than 21.00 in. (533 mm). Panel A24P20 has a flange on all four sides.
Main Features
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Type 4-rated gasket
- 90-degree external formed flange on top of body opening
- Type 316L stainless steel padlocking PowerGlide Handle and 3-point latching
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: N280416G051
- Catalog #: A42P36
- Catalog #: A42P36G
- Catalog #: A42P36SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
Specifications
| Height | 42 in / 1067 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 39.00 x 33.00 in / 911 x 838 mm |
| Conductive Panel | A42P36G |
| Steel Panel | A42P36 |
| Data Pocket | Large |
| Stainless Steel Panel | A42P36SS6 |
| Color | White |
| Finish | Powder Coated |
| BULLETIN NUMBER | A4SW3 |
