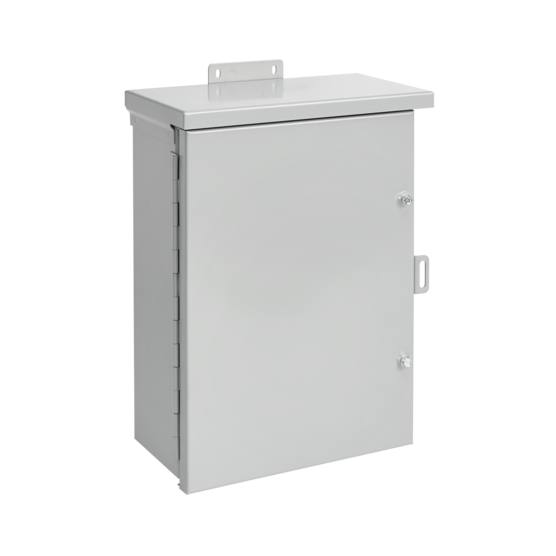

Hoffman A42R3012HCR | Hinge-Cover Medium Type 3R, 42.00x30.00x12.00, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A42R3012HCR | Hinge-Cover Medium Type 3R, 42.00x30.00x12.00...
Description
Description
Medium Drip-Shield Hinged-Cover, Type 3R, protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock and collar studs for optional panel mounting. These enclosures have a size range of 16 x 12 x 6-in. to 60 x 36 x 12-in.
Purchase panels separately.
Panel edges are flanged when greater than 30 inches (762mm).
Main Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- 16-gauge plated steel continuous hinge has stainless steel pin
- Cover fastened securely with captive plated steel screws
- Collar studs provided for mounting optional panels
- Hasp and staple provided for padlocking
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: A42P30
- Catalog #: AGS816
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
- Catalog #: AGS808
- Catalog #: APWK3523NF
- Catalog #: ATPPY61
Specifications
| Height | 42 in / 1067 mm |
|---|---|
| Width | 30 in / 762 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 14 ga / 1.9 mm |
| Door Thickness | 14 ga / 1.9 mm |
| Panel Size | 39.00 x 27.00 in / 991 x 686 mm |
| Mounting | 43.00 x 27.00 in / 1092 x 686 mm |
| BULLETIN NUMBER | A3M |
Documents and Downloads
Documents and Downloads
- Hoffman A42R3012HCR CERT-00066
- Hoffman A42R3012HCR Declaration of Compliance
- Hoffman A42R3012HCR CE-00010
- Hoffman A42R3012HCR Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
- Hoffman A42R3012HCR Single-Sided Shelf Repainting Instructions
- Hoffman A42R3012HCR Hinge-Cover, Medium, Type 3R Instruction Manual
