Brand: Hoffman | SKU: 445748

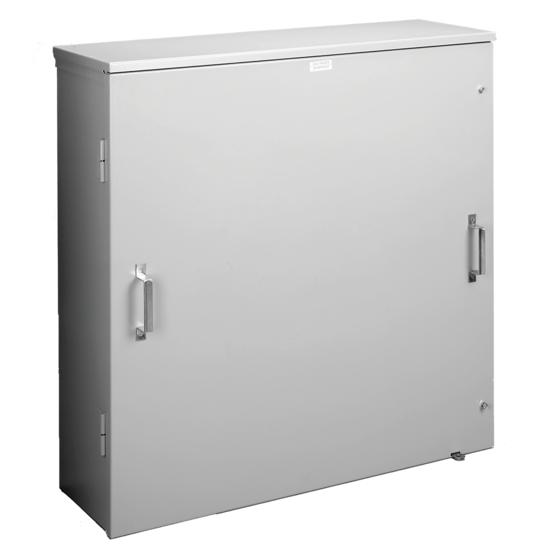

Hoffman A482411HCT | Current Transformer, Hinged Cover, 48.00x24.00x11.00, Steel

$1,629.80

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

CT Cabinet Hinged-Cover, Type 3R provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies.

A484814HCT is a double-door cabinet.

Main Features

Drip shield top and seam-free sides, front and back
Mounting holes on back of enclosure
Mounting studs are provided on the enclosure body
Cover is removable in the open position
Door handles provided
Provisions for padlocking
No gasketing or knockouts
Ground lug
Mounting provisions for optional door stop
Enclosures are finished with paint over plated surfaces

Specifications

Industry Standards

UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA Type 3R
IEC 60529, IP32

Related Accessories

Catalog #: APWK53NF
Catalog #: AS050

Specifications

Height	48 in / 1219 mm
Width	24 in / 610 mm
Depth	11 in / 279 mm
Protection Rating	NEMA Type 3R; IP32
Material	Mild Steel
Finish	Galvanized; Powder Coated / Galvanized; Powder Coated
Color	Gray
Color Code	ANSI 61
Body Thickness	12 ga / 2.66 mm
Door Thickness	14 ga / 1.9 mm
Gauge	14 ga
Weight	117 lb
BULLETIN NUMBER	A90CT
