Brand: Hoffman
|
SKU:
477262

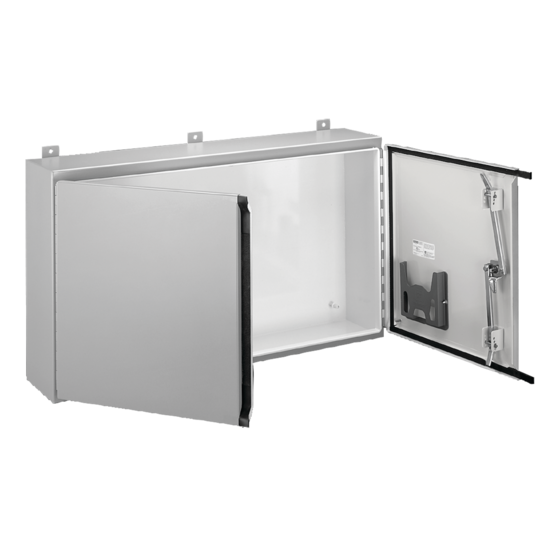

Hoffman A484812WFLP | Continuous Hinge 2-Door with Handle Type 12, 48.00x48.00x12.00, Gray, Steel
Regular price
$3,402.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A484812WFLP | Continuous Hinge 2-Door with Handle Type 12, ...
Regular price
$3,402.82
Unit price
Description
Description
Ideal for larger wall-mount applications requiring ease of installation and access to full-width internal panel. Overlapping door design allows easy access in areas with minimal aisle space.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
A484812WFLP back is 10 gauge.
Main Features
- Seams continuously welded and ground smooth
- External welded-on mounting brackets for easy installation
- External formed body flange channels away liquids
- Gasketed overlapping doors eliminate need for center post
- Removable door with continuous hinge
- Oil-tight key-locking handle with 3-point latch
- Removable heavy gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs for mounting optional panels
- Bonding provision on both doors
- Body is white inside with ANSI 61 grey finish outside
- Door is ANSI 61 grey inside and outside
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA, File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A48P48
- Catalog #: A48P48G
- Catalog #: AFC412SS
- Catalog #: AL36CR
- Catalog #: APWK116NFNM
- Catalog #: APWK1212H
- Catalog #: APWK133NF
- Catalog #: APWK138NF
Hoffman On Demand Alternatives
- Catalog #: A484812WFLP
- Catalog #: A426012WFALP
- Catalog #: A364212WFLP
- Catalog #: A304210WFLP
- Catalog #: A244208WFLP
Specifications
| Height | 48 in / 1219 mm |
|---|---|
| Width | 48 in / 1219 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Panel Size | 44.00 x 44.00 in / 1118 x 1118 mm |
| Conductive Panel | A48P48G |
| Panel | A48P48 |
| Panel Gauge | 10 |
| Stiffener Body | 0 |
| BULLETIN NUMBER | A12 |
Documents and Downloads
Documents and Downloads
- Hoffman A484812WFLP Data Sheet
- Hoffman A484812WFLP Declaration of Conformity, NEMA/UL/cUL Type 12, 13
- Hoffman A484812WFLP Declaration of Conformity, CSA Type 12
- Hoffman A484812WFLP Declaration of Compliance
- Hoffman A484812WFLP Enclosure Alterations
- Hoffman A484812WFLP Lockwasher and Hub Installation Instruction Manual
