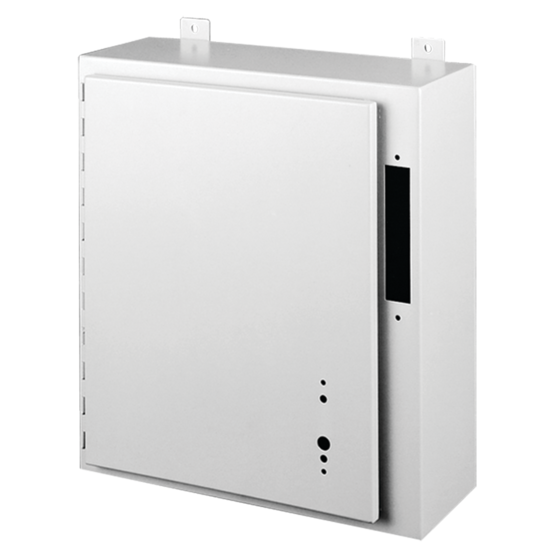

Hoffman A48AB3810LP | Allen-Bradley 1494 Cutout Disconnect Enclosure, Type 12, 48x37.38x10, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A48AB3810LP | Allen-Bradley 1494 Cutout Disconnect Enclosur...
Description
Description
These enclosures house Allen-Bradley Bulletin 1494F flange-mount disconnect switches and Bulletin 1494D flange-mount operators for circuit breakers.
Each Allen-Bradley 1494 Cutout Disconnect Enclosure, Type 12 enclosure furnished with guide bracket(s) and door catch welded to door, locking bar(s) for door hardware, spacers and screws to support disconnect to panel and instructions to locate and install disconnects.
Purchase panels separately.
NOTE: color inside the door is ANSI 61 Gray.
Main Features
- Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
- Type 12 rated door gasket
- Seams continuously welded and ground smooth
- Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
- Collar studs provided for mounting optional panels
- Removable door with continuous hinge
- External mounting brackets
- Data pocket is high impact thermoplastic
- External-formed flange around all sides of enclosure opening
- Guide bracket(s) and door catch welded to door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA File No. 42186: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
- Catalog #: T150116G120
Specifications
| Finish | Powder Coated |
|---|---|
| Material | Mild Steel |
| Panel Size | 45.00 x 33.00 in / 1143 x 838 mm |
| Conductive Panel | A48P36G |
| Data Pocket Size | 12.00 x 12.00 in / 305 x 305 mm |
| Panel | A48P36 |
| Thickness | 14 ga / 1.9 mm |
| Weight | 130 lb |
| BULLETIN NUMBER | A22 |
