Brand: Hoffman
|
SKU:
9885963

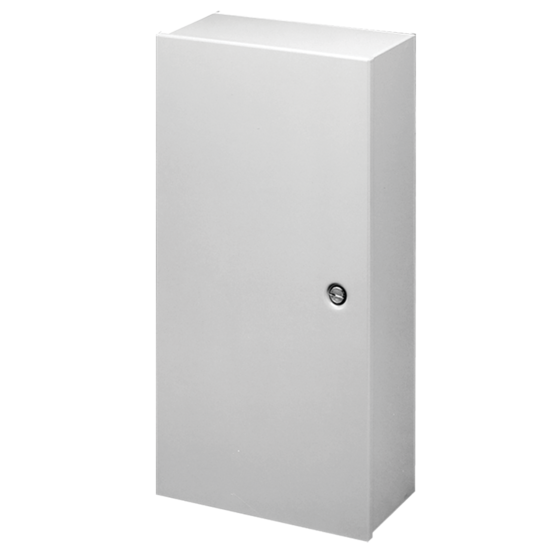

Hoffman A48N3613 | Large, Type 1, 48.00x36.00x13.25, Gray, Steel
Regular price
$2,205.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A48N3613 | Large, Type 1, 48.00x36.00x13.25, Gray, Steel
Regular price
$2,205.16
Unit price
Description
Description
Large Hinged-Cover, Type 1, have a size range of 42 x 30 -in. to 48 x 36-in., mounting provision for optional panel, and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures
Purchase panels separately. Optional aluminum panels are available for most sizes.
Mounting Bracket Kit must be ordered separately.
Main Features
- Continuous hinge on door
- Slotted flush latch; optional latches available
- Collar studs provided for mounting optional panels
- Mounting holes on back of enclosure for optional mounting bracket kit, AMFLN1
Specifications
Specifications
Specifications
| Height | 48 in / 1219 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 13.25 in / 337 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Panel Size | 45.00 x 33.00 in / 1143 x 838 mm |
| Panel | A48P36 |
| Mounting Bracket Kit | AMFLN1 |
| BULLETIN NUMBER | A1L |
