Brand: Hoffman
|
SKU:
PEPSI-315994
Hoffman A4AXFNPG | 4" Compact Axial Fan, 115V, 50/60Hz
Regular price
$244.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A4AXFNPG | 4" Compact Axial Fan, 115V, 50/60Hz
Regular price
$244.00
Unit price
Brand: Hoffman
|
SKU:
PEPSI-315994
Regular price
$244.00
Unit price
Shipping calculated at checkout.
Description
Description

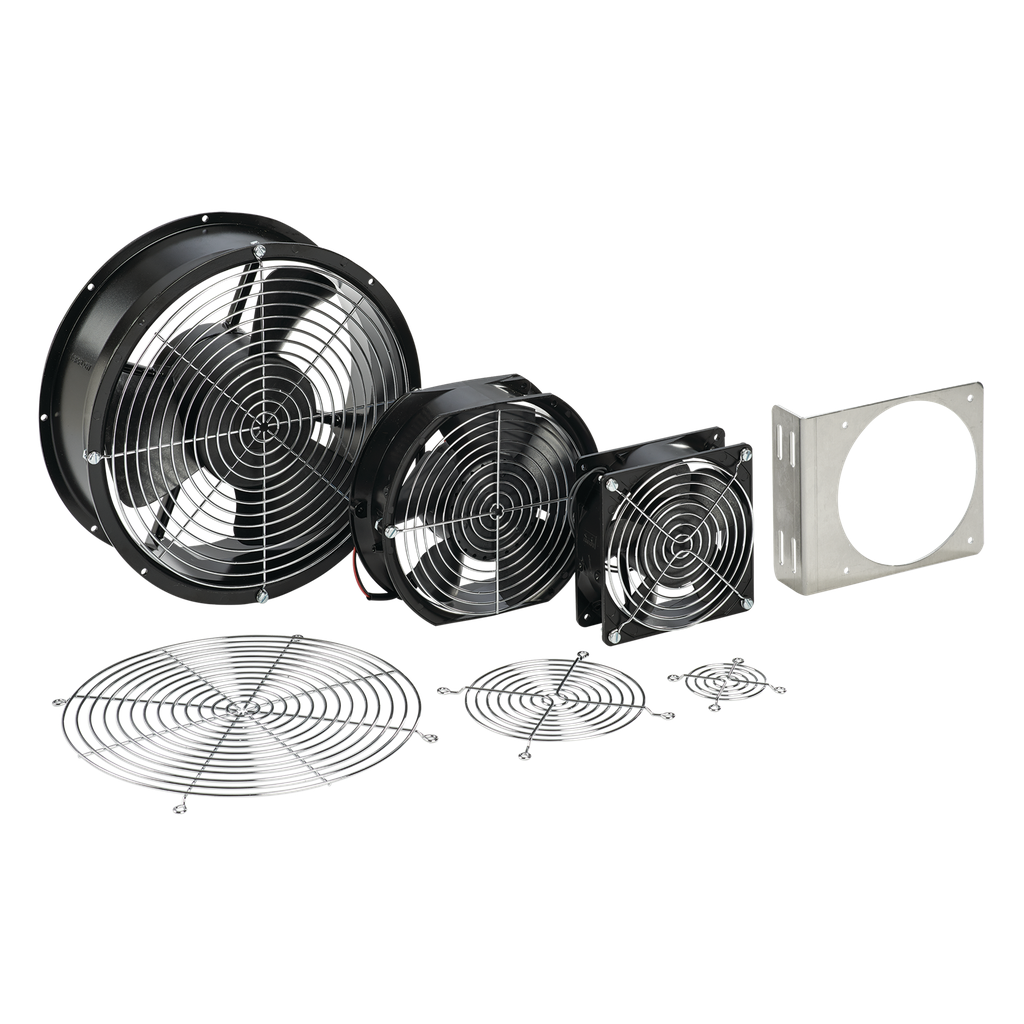

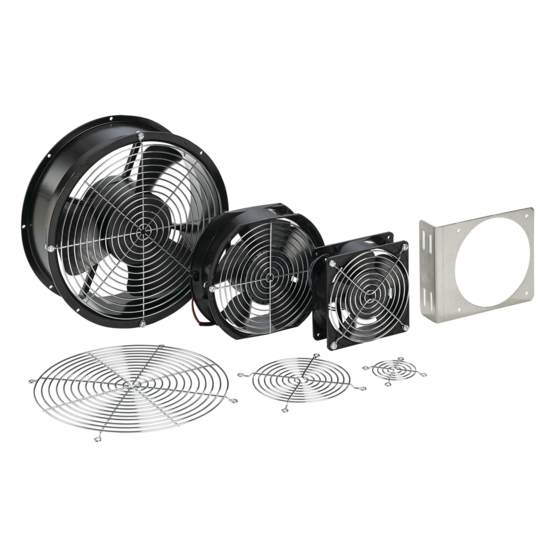

Hoffman A4AXFNPG | 4" Compact Axial Fan, 115V, 50/60Hz
Compact Cooling Fans are ideal for applications where enclosure space is limited and quiet, reliable cooling is required. Engineered for 50,000 hours of continuous operation without lubrication or service.
Hoffman - A4AXFNPG - Features
- Maximum operating temperature is 158 F (70 C)
- 4-inch fan is thermally protected and uses permanently lubricated ball bearings
- 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
- Split-capacitor motors are thermally protected to avoid premature failure
- Dynamically balanced impellers molded from polycarbonate material
- One finger guard is furnished (additional finger guards are available)
- All mounting hardware is provided
- 240 and 560 CFM fans have ball bearing construction and split capacitor motors
- Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
- Fan bracket and additional finger guards must be purchased separately
Specifications
Specifications
Hoffman - A4AXFNPG - Product Categories
- Heat, Ventilation & Builder Products
- Air Circulators
- Axial Fans
Hoffman - A4AXFNPG - Technical Information
| Airflow Rate | 85/100 |
|---|---|
| Amperage | 0.26/0.21 Amp |
| Applications | Datacom and Telecom Equipment; Networking, Storage and Data Center |
| Color Coding | RAL 9005 |
| Material | Steel |
| Max Current | .26/.21 A |
| Motor Type | AC |
| Power Rating | 17 W |
| Size | 115v 50/60Hz in |
| Type | Compact |
| Voltage | 100 Volt |
Hoffman - A4AXFNPG - Dimensions
| Depth | 1.74 Inch |
|---|---|
| Height | 2.7 Inch |
| Length | 6.2 Inch |
| Width | 4.62 in |
Hoffman - A4AXFNPG - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510504298 |
| Color | Black |
| Finish | Powder Coated |
| GTiN | 00783510504298 |
| Product UPC | 78351050429 |
| Weight | 1.6 lb |
