Brand: Hoffman
|
SKU:
649647

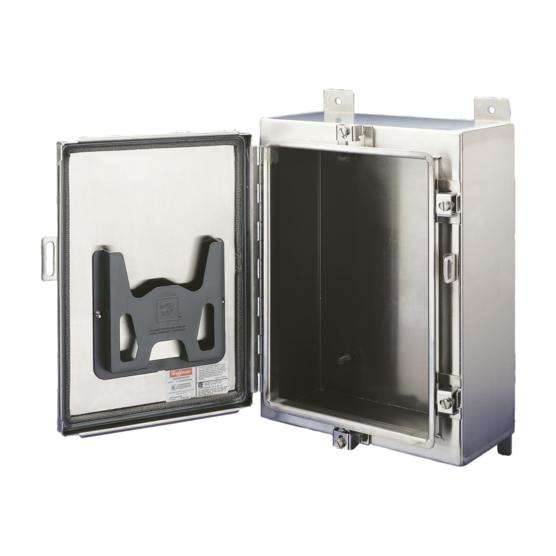

Hoffman A603612LPEMCSS | Wallmount, Hinged with Clamps, EMC, Type 4X, 60x36x12, SS 304
Regular price
$15,427.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A603612LPEMCSS | Wallmount, Hinged with Clamps, EMC, Type 4...
Regular price
$15,427.15
Unit price
Description
Description
Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.
Purchase panels separately. Optional conductive, mild steel, stainless steel, aluminum and composite panels are available for most sizes. See Accessories.
Main Features
- EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assemblies
- Hasp and staple for padlocking
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on door; grounding stud on body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AL16
- Catalog #: AS050SS
- Catalog #: A60P36
- Catalog #: A60P36AL
- Catalog #: A60P36G
- Catalog #: A60P36SS6
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
Specifications
| Height | 60 in / 1524 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 57.00 x 33.00 in / 1448 x 838 mm |
| Data Pocket | Large |
| Conductive Steel Panel | A60P36G |
| Clamp Quantity | 9 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| BULLETIN NUMBER | A4SEM |
